Toshiba SD-K740 Motherboard Fuse Replacement

Geschrieben von: John Lokker
  • Kommentare: 0
Toshiba SD-K740 Motherboard Fuse Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

This guide gives instructions on how to remove the fuse located on the yellow motherboard of the Toshiba SD-K740 DVD player.

  1. Vyud1h2MWuS2TpZx

    • Unplug the DVD player before beginning.

    • Remove the three 7.7 mm screws from the back panel using a Phillips #0 screwdriver.

  2. qjIqF5xWSxeWSjY2
    qjIqF5xWSxeWSjY2
    yr4UK2hKnPb3nVEI

    • Turn the DVD player on its side.

    • Remove the 7.7 mm screw.

    • Flip the DVD player onto its other side.

    • Remove the 7.7 mm screw.

  3. XFCru5vZWdaO1Vi5

    • Flip the DVD player over onto its front face.

    • Remove the back panel by lifting up and pulling it towards yourself.

  4. IpqXAHrkxMYcYtTE
    IpqXAHrkxMYcYtTE
    PbsBNSAX6bKjLNBO

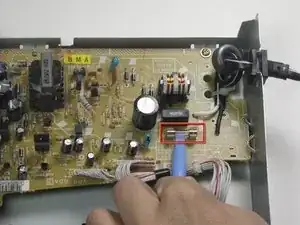

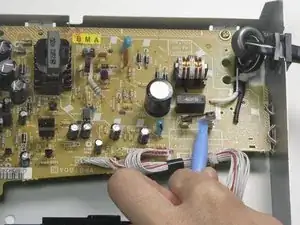

    • Using the plastic opening tool, gently pop the fuse out of its restraining brackets.

Abschluss

To reassemble your device, follow these instructions in reverse order.
