Toshiba SD-K740 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide gives instructions on how to remove the Left-Side Motherboard (Green) of the Toshiba SD-K740 DVD player, which controls the display and disc drive function.

  1. Vyud1h2MWuS2TpZx

    • Unplug the DVD player before beginning.

    • Remove the three 7.7 mm screws from the back panel using a Phillips #0 screwdriver.

  2. qjIqF5xWSxeWSjY2
    qjIqF5xWSxeWSjY2
    yr4UK2hKnPb3nVEI

    • Turn the DVD player on its side.

    • Remove the 7.7 mm screw.

    • Flip the DVD player onto its other side.

    • Remove the 7.7 mm screw.

  3. XFCru5vZWdaO1Vi5

    • Flip the DVD player over onto its front face.

    • Remove the back panel by lifting up and pulling it towards yourself.

  4. KayvR3GonC6IDBJE

    • Flip the DVD player so its top is sitting on your working surface.

    • Lift and push away the two tabs located in the middle of the player.

    • The front panel will not detach during this step, so do not force it.

  5. istnxiFT1QvKKWB1

    • Flip the DVD player on its side.

    • Lift and slide forward the single tab on the side.

    • The front panel will not detach during this step, so do not force it.

  6. IQfbVfABamR5P3aX
    IQfbVfABamR5P3aX
    xNPjRTEfbrabbDZK

    • Grasp the front panel and pull forward to your right to remove it.

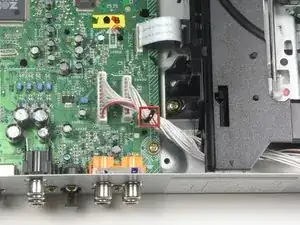

  7. wIiYRNKDCHETENiu

    • Remove the black tie holding the two rear ribbon cables together by untwisting it.

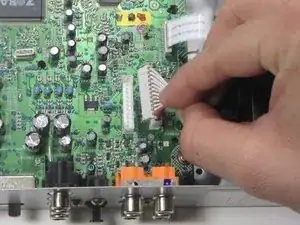

  8. CTki5rLKfovjFCch
    CTki5rLKfovjFCch
    LxRIqCjJFNYijGnn

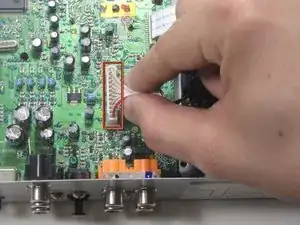

    • Remove the first of two multipin cables connected to the Left-Side Motherboard (Green) by pulling vertically.

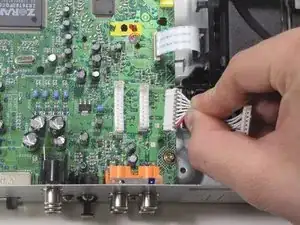

  9. 35BarwGYLYnHhnB4
    35BarwGYLYnHhnB4
    rDwvfBKYIVm4oNFK

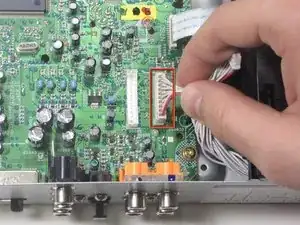

    • Remove the second of two multipin cables connected to the Left-Side Motherboard (Green) by pulling vertically.

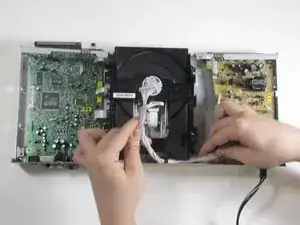

  10. cFAHK3cLWyYthrI3

    • Pull the two cables to the right to disentangle from the disc drive.

    • Do not tug, pull, or force the cable. It should slide out with minimal force.

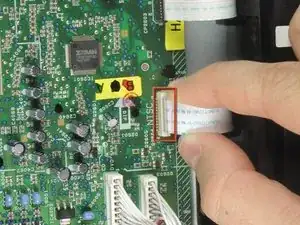

  11. 2YjiXCYLTXABrQI1
    2YjiXCYLTXABrQI1
    VooPUaqdoJWxweJw

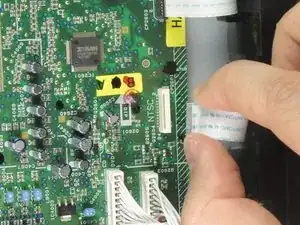

    • Remove the first of three ribbon cables on the left hand side of the disc drive by pulling vertically.

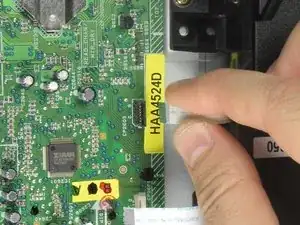

  12. BEoGEqsCpeXvBInC
    BEoGEqsCpeXvBInC
    SFCO3bjbTKXO1IGH

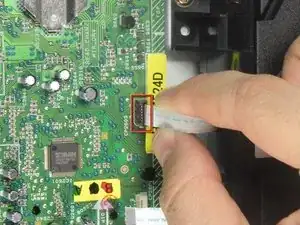

    • Remove the second of three ribbon cables on the left hand side of the disc drive by pulling vertically.

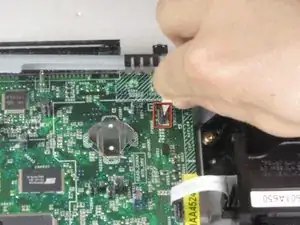

  13. JTNH6OjATwTQmhvq
    JTNH6OjATwTQmhvq
    dcOlwZGKcJeBv5ZJ

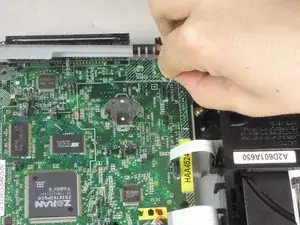

    • Remove the third of three ribbon cables on the left hand side of the disc drive by pulling vertically.

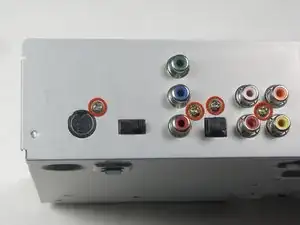

  14. DrqKVHSZcIIng1Qr

    • Flip the DVD player so it is resting on its front face (so the back is facing you).

    • Remove the four .320 inch screws holding the motherboard to its casing.

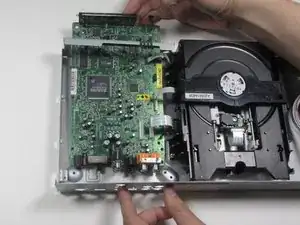

  15. EPSUbtUGXNopRMyt
    EPSUbtUGXNopRMyt
    PlMD1g5sIvIq4kW3

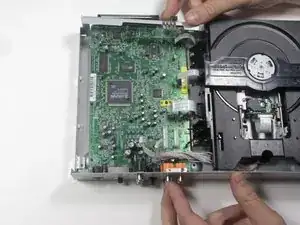

    • Push the motherboard forward a few inches to detach it from the casing.

  16. vgtUiCUTjr3rcFYT
    vgtUiCUTjr3rcFYT
    cSv2gqkxLdwxqtZQ

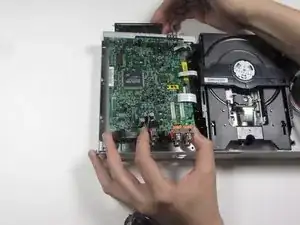

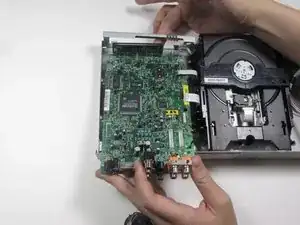

    • Lift the motherboard from the rear and pull backward (towards you) to remove it entirely from the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
