Toshiba Satellite 1415-S105 Keyboard Replacement

Geschrieben von: Kiril Lange
  • Kommentare: 4
Toshiba Satellite 1415-S105 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

Use this guide to replace the keyboard on your Toshiba Satellite.

  1. yrDNFXqk1jVX2A4J

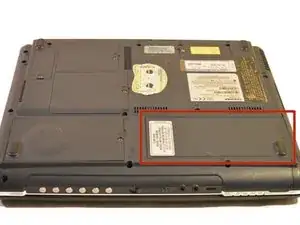

    • The battery is located on the front right corner of the laptop.

  2. fOUiSJgXBa2ttNl6

    • With one finger on the raised grip, slide the latch towards the front of the laptop.

  3. xRUntGHJX1B5y2SK
    xRUntGHJX1B5y2SK
    WpMFc6bUoWvUSeKn

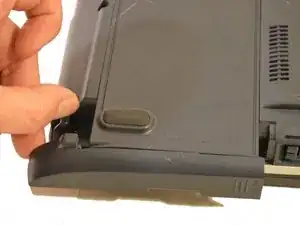

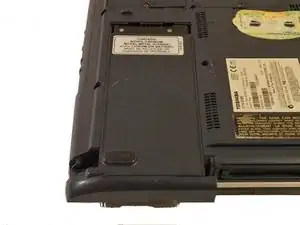

    • Pull the battery out towards the side.

  4. pteM2BVBULn2C1jZ
    pteM2BVBULn2C1jZ
    fBDnjdxOd6LQFSFS

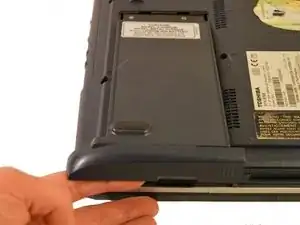

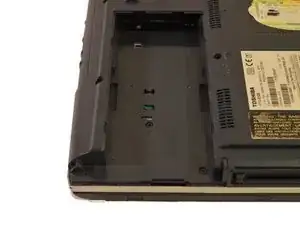

    • Lift the battery straight up, out of the computer.

  5. q4ZwDfXdyViqCIho
    q4ZwDfXdyViqCIho
    Zm2rjYQfY4wOeB5i
    aAZbW2KLbrMy3KyF

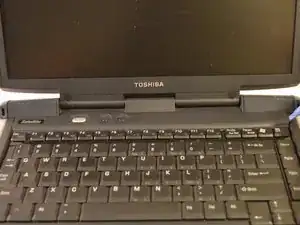

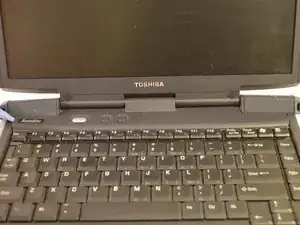

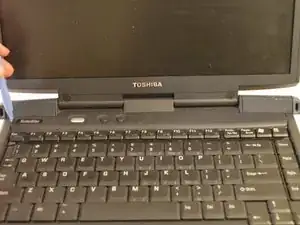

    • Using a set of case opening tools, pry open the left and right sides of the black plastic strip above the keyboard.

    • Fully detach the strip.

    These last two pictures seem to show the same thing.

    Dan Brown -

  6. W5YBUiCEvERQ46xN
    W5YBUiCEvERQ46xN
    1veBDvMoDSjsOG3t

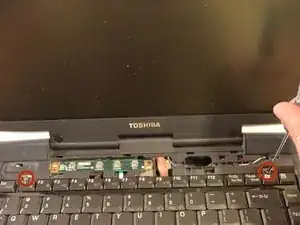

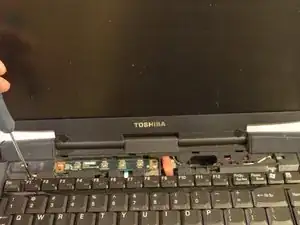

    • Unscrew the two screws near the top of the keyboard.

    Make sure to include screw lengths to the nearest mm.

    Dan Brown -

  7. K3dwIvisOgDebPc5
    K3dwIvisOgDebPc5
    HaX1WQnhGXNVtxGq

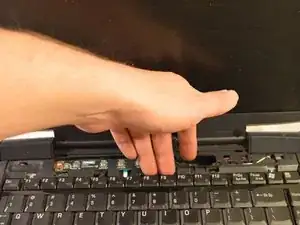

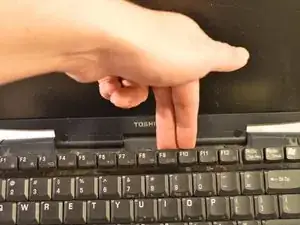

    • Lift the keyboard by holding the middle top of the keyboard.

    • The keyboard is still connected by a ribbon cable to the motherboard.

  8. J3AVXQ5FewWZQFeO
    J3AVXQ5FewWZQFeO
    soCRaW5jqBgmexCB
    ojZjhqfrDFipbCkW

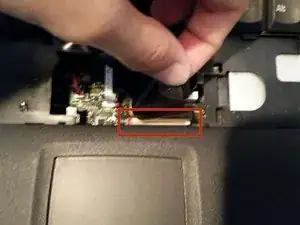

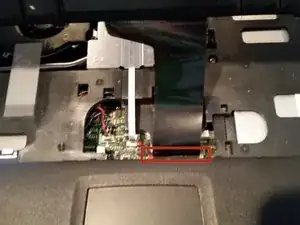

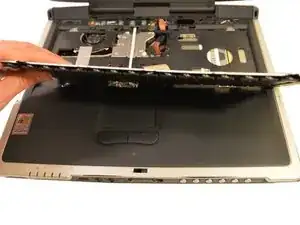

    • Carefully pull upwards on the ribbon cable to detach.

    • Remove keyboard.

    Do not pull any ribbon cable. Instead slide moving part upwards. The ribbon is now loose and can be removed without the slightest force. The keyboard connection is similar.

    Albert van der Horst -

    Can i removed ribbon by hand only or do i need to undo the holder.

    Odiri -

Abschluss

To reassemble your device, follow these instructions in reverse order.
