Toshiba Satellite 1415-S105 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 - 5 Minuten

Einleitung

Upgrading the RAM is a straightforward process that can significantly improve performance.

Two RAM slots allow up to 512MB of PC1600 DDR SDRAM.

  1. RHbxXFeouSVnoGGN
    RHbxXFeouSVnoGGN
    Uv5wGyxmLaBK3vVj

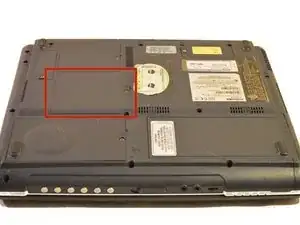

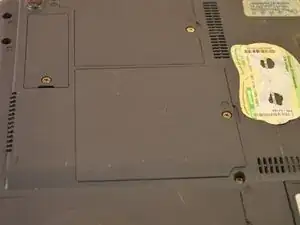

    • The RAM access panel is located near the middle of the bottom.

  2. sBDitkX5DXVHux63

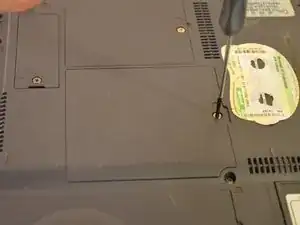

    • Unscrew the single screw labeled F4 on the panel.

  3. RcdFQYQeIUwHuhfD

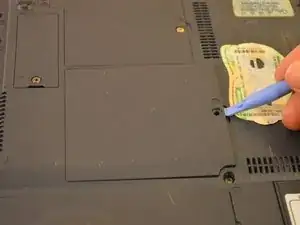

    • Using a spudger, inserted into the notch under the screw hole, pry open and remove the cover.

  4. AM6HWYue6w2PwGae
    AM6HWYue6w2PwGae
    rLJIuBBFOVDOJ5Xd

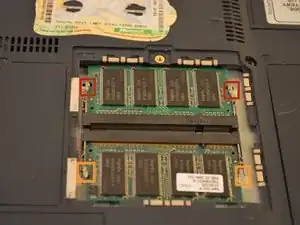

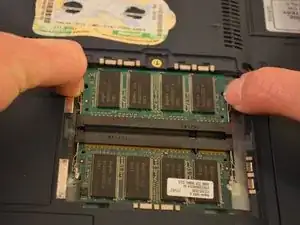

    • Pull outward on each pair of restraining clips to free each chip.

  5. tyPL2PG16rdQpYHR
    tyPL2PG16rdQpYHR
    GVkusEK2BlJPrSlD

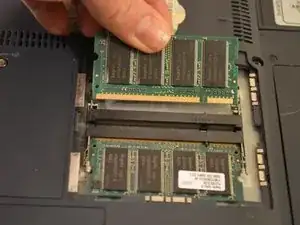

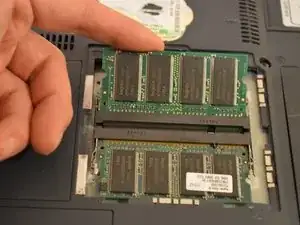

    • The RAM chips can now be pulled out.

    • This laptop supports a maximum of two memory modules. The largest capacity for each is 256MB of PC1600 DDR SDRAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
