Toshiba Satellite A105-S4011 RAM Replacement

Geschrieben von: Lucas Salisbury
  • Kommentare: 0
Toshiba Satellite A105-S4011 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to remove the current RAM module from this laptop and how to re-install a RAM module. Accessing the RAM in this computer is straightforward and requires minimal minimal dis-assembly.

  1. Xr2cVQpIgCFTmBaA
    Xr2cVQpIgCFTmBaA
    1lTmiH3dZTIdjN4H

    • Turn the laptop over and locate the lock and battery release switches. Unlock the battery by changing the switch on the right from locked to unlocked by sliding the switch outward.

  2. GZxvkxgEpEFeVipx
    GZxvkxgEpEFeVipx
    npisqqisH3JHXN2U

    • Hold the release switch and pull out the battery towards you.

  3. 4l3GLkICiNRDccOC

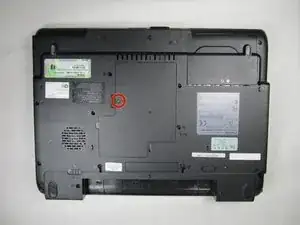

    • Locate the screw that is holding the back cover in place and, unscrew it using the #1 Phillips Screwdriver.

    • This screw cannot be taken out, it is a "captive" screw.

  4. nZSvTuxFbyIIpgRl

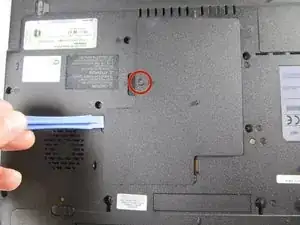

    • Using a plastic opening tool, pop off the back cover. Your going to insert the tool into the small slit located on the back cover piece.

    • Be careful when prying the back cover off because you may damage the cover or crack the plastic.

  5. MrZXMye6V5wKbFle
    MrZXMye6V5wKbFle
    1PZSUtWZG1iQ23sB

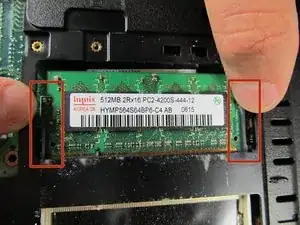

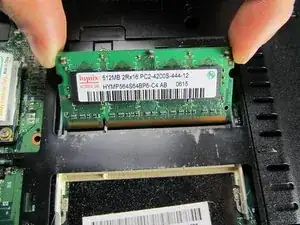

    • Locate the RAM (green module pictured here), and the two prongs on each side of the module. Press the two prongs outwardly, and pull out the RAM module.

    • Grounding yourself may be a good idea before actually touching the RAM module. This entails touching a conductive metal in order to remove any excess static energy in your body.

Abschluss

To reassemble your device, follow these instructions in reverse order.
