This guide will help you remove and replace the Toshiba Satellite A105-S4011 touchpad. The touchpad is responsible for the cursor input. If your touchpad is experiencing the cursor drifting, unresponsive input, erratic input, or any input that is continuously not intended by the user, it may need replaced. First, check the user manual for any troubleshooting steps. If that does not help, a new touchpad may be advisable.

Toshiba Satellite A105-S4011 User Manual
”TouchPad™ Enable/Disable (FN+F9 or by help of software)” (Pg. 1)

Please make sure to turn off the Toshiba Satellite A105-S4011, unplug the device, and remove the battery before starting any other disassembly.

  1. Xr2cVQpIgCFTmBaA
    Xr2cVQpIgCFTmBaA
    1lTmiH3dZTIdjN4H
    • Turn the laptop over and locate the lock and battery release switches. Unlock the battery by changing the switch on the right from locked to unlocked by sliding the switch outward.

  2. GZxvkxgEpEFeVipx
    GZxvkxgEpEFeVipx
    npisqqisH3JHXN2U
    • Hold the release switch and pull out the battery towards you.

  3. VXYYGZVQvdFdFAij
    VXYYGZVQvdFdFAij
    GcXQykKWHKZ4GKJj
    QFJV1BvQb4N5xNTG
    • Make sure to turn off the laptop, unplug the device and/or remove any batteries.

    • Open the laptop so the display screen is bent fully back with the display facing upward, parallel to the surface you are working on.

    • Wedge the Phillips 00 screwdriver above the F1 key, and separate the top piece of plastic from the body of the laptop. Don't worry about breaking it! You will need to forcefully wedge the screwdriver under the plastic, simultaneously pushing upward and forward.

    • Once that section has popped up, work on pulling the rest of the plastic piece up and out, alternating from left to right.

  4. f6clmPvu6Hvx3WA2
    f6clmPvu6Hvx3WA2
    eKBMJkNuEdwwLfyv
    LJU3q1knWHCn5TSu
    • Completely remove the plastic piece from the body of the laptop.

    • Using the Phillips 1 screwdriver, unscrew the two 3mm screws located at the top corners of the keyboard. (See the second picture for additional clarification.)

  5. swnp3pYKgncUWKDV
    swnp3pYKgncUWKDV
    eKZMjKBYRGHkxXi4
    14Q3UMBIv2KUOugq
    • Without yanking, lift the keyboard up carefully.

    • Now that the board is free, cautiously undo and pull free the ribbon that connects the keyboard to the body of the laptop.

  6. mkDjMUcUPD1GsglZ
    mkDjMUcUPD1GsglZ
    oBhYoDufqVa1eSxB
    4SvN1sDwHwvoLZjA
    • Now you need to detach the screen from the rest of the laptop. Start by removing the screws on the hinge (indicated in picture one).

    • After removing the screws look to the right side of the laptop. Remove the white wire in the channel found there. To do this you only need to move the wire around the plastic pieces holding it down.

    • You will also find a connector on the left side of the laptop (indicated in picture two in the square). Pull gently on it to detach it. You may now pull the display completely off.

    • The eyelet in the circle is a necessary grounding wire for the LCD, when you reattached the hinges to the base you will need to put a screw through this eyelet.

  7. jmMIDxlRkNfZcykZ
    jmMIDxlRkNfZcykZ
    eltZ4D6SV1CFIdEG
    3WhWpcA4e5mRQo2n
    • The next step is to remove the plastic from around the display. First you must remove the 5 screws found around the plastic part of the display (indicated in picture 1).

    • Note: There may be a rubber pieces covering the screws. You can just pry these off with your screwdriver or your fingernails.

    • After the screws are removed you can pry the plastic part off. This may require a bit of force, but be careful not to snap the plastic. Always start in one place and slowly lift around the screen.

    This step is not needed.

    Andrew Wallace -

  8. tCYBNQAmJRBwt6c3
    tCYBNQAmJRBwt6c3
    CGeU2CAVPgtHVR4h
    YYlYjqPINmXF5c1i
    • The last step is to remove the lcd from the plastic. To do this you must remove one screw found directly below the screen (indicated in picture one).

    • After the screw is removed lift the display up. It should come free easily. You can now replace the LCD with a new one. The assembly is the reverse of the removal.

    This step is not needed for fan replacement.

    Andrew Wallace -

  9. PNfkxUdflAlGBTG2
    PNfkxUdflAlGBTG2
    Q6T2YvdXxiNkq5ae
    XFx4isWMRACiW1qU

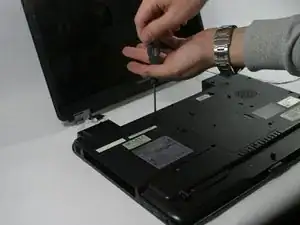

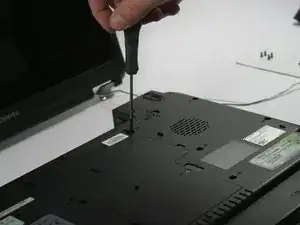

    • This step requires removal of the screws under the laptop. Locate the screws that are embedded within a hole on the underside of the laptop. These are the screws that require removal.

    • Screws that support a plate are not required to be removed.

    • All necessary crews to be removed are highlighted with red circles (in the final picture).

  10. f5UgNSJXCdu4T2c1
    f5UgNSJXCdu4T2c1
    VvICXSHQRwXJqxKR

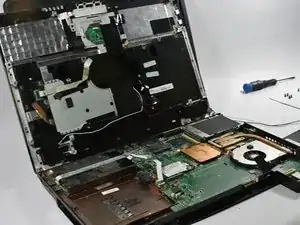

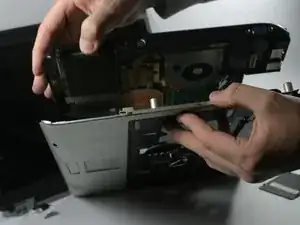

    • Now that the screws on the underside of the laptop have been removed, the plastic body can be separated as shown.

    • The body should be removed slowly and might be a little snug initially before coming apart. Work your way around the case, opening it up little by little.

  11. FonLBegMPlSdBcaw
    FonLBegMPlSdBcaw
    taofDfQEIPHbmMIF
    xY511NHQHRFsdKwh

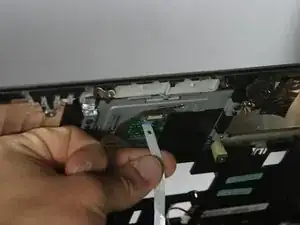

    • The touch-pad is located as shown in the first picture provided.

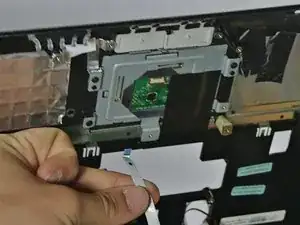

    • Locate and disconnect the electronic strip (cable) that is connected on the touch-pad unit.

  12. SrRtvIKpXxG6gCBX
    SrRtvIKpXxG6gCBX
    rBKckT6OCtvrv1tL
    YPVaCamAMBCyWXUq

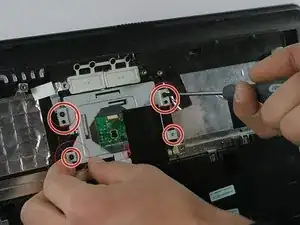

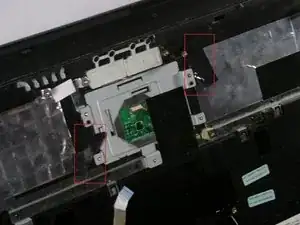

    • Locate the five (5) screws that support the touch-pad and remove them.

    • The screws may be covered by tape. If the tape is present, peel it so that the screws are exposed for removal.

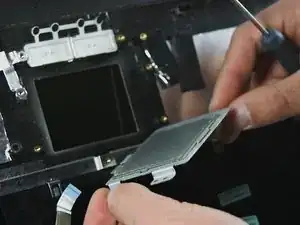

    • Once the screws are removed and the tape is peeled back , the touch-pad should be able to be removed without any issues.

    • Finally, a new touch-pad can be installed. To re-assemble the laptop, follow the reverse order of the disassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
