The Toshiba Satellite A105-S4074 relies on its internal fan located over the main processor to keep cool; if there are issues with your system's fan, the laptop may overheat and shut down. Should replacement be required, these easy to follow instructions will guide you through the process.
-
-

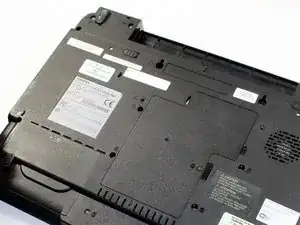

Slide both the left and right battery release tabs outwards away from center of the laptop.
-
While still holding the left release tab, slide the battery towards you using your right hand.
-
Fully remove the battery from the laptop.
-
-
-
Turn the laptop back over so it is right-side up, with the cover facing up.
-
Open the laptop all the way so that the screen is horizontal with the body.
-
-
-

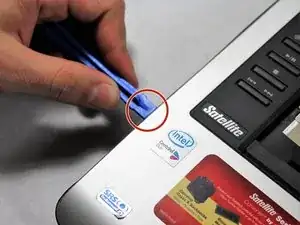

Using the iFixit plastic opening tool, pop up the left tab along the top of the panel that is connected to the hinge for the widescreen display.
-
Using the plastic opening tool, pop up the right tab along the top of the panel that is connected to the hinge for the widescreen display.
-

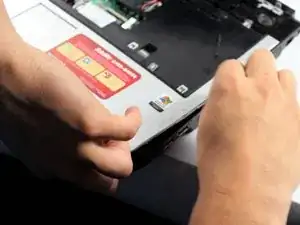

Pry up and remove the cover panel that is located above the keyboard.
-
-
-
Position laptop so that both screws connecting the keyboard to the laptop are visible.
-
Unscrew the left 3.0 mm screw that is holding the keyboard onto the laptop using the Phillips #0 screwdriver.
-
Unscrew the right 3.0 mm screw that is holding the keyboard onto the laptop using the Phillips #0 screwdriver.
-
-
-
Gently lift the keyboard from either side where the screws were located.
-

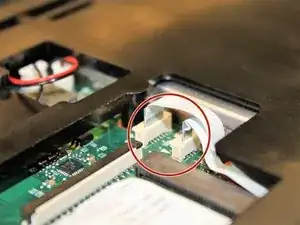

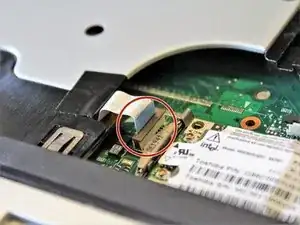

Locate where the ribbon cable connects to the motherboard, and gently open clamp.
-
Pull out the ribbon cable connecting the keyboard to the laptop.
-
-
-

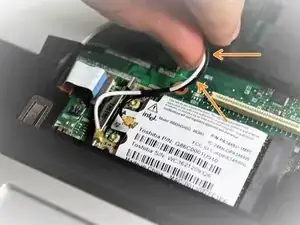

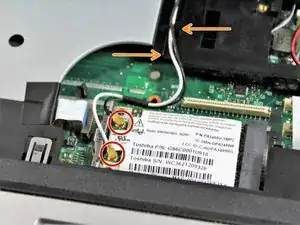

Carefully detach the black and white antenna cables connecting the widescreen display to the Intel® Pro/Wireless 3945ABG card on the motherboard by lifting the brass connectors with your fingers.
-
Remove the black and white antenna cables from the channel guides in the bottom half of the laptop.
-
-
-

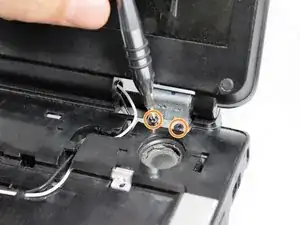

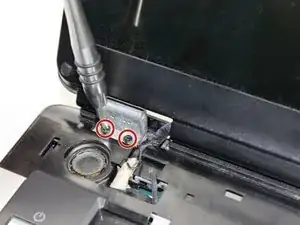

Unscrew the two 4.0 mm screws from the left hinge located at the base of the widescreen display using the Phillips #1 screwdriver.
-
Unscrew the two 4.0 mm screws from the right hinge located at the base of the widescreen display using the Phillips #1 screwdriver.
-

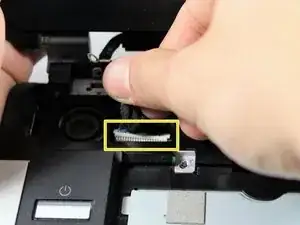

Gently disconnect the black video cable that connects the screen to the motherboard.
-
-
-

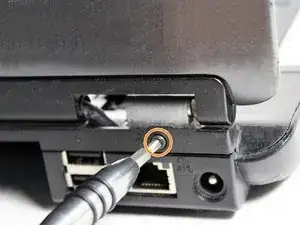

Turn the computer around so the screen faces away from you, and unscrew the 5.0 mm screws on the left back hinge using the Phillips #1 screwdriver.
-

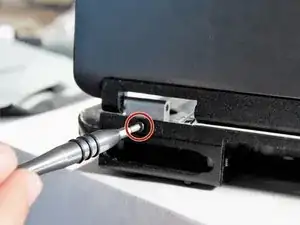

Turn the computer around so the screen faces away from you, and unscrew the 5.0 mm screws on the right back hinge using the Phillips #1 screwdriver.
-

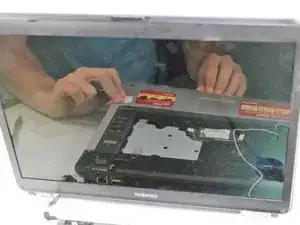

Remove the display and set it aside.
-
-
-
Turn the laptop over with battery slot facing away from you.
-

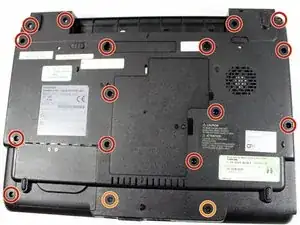

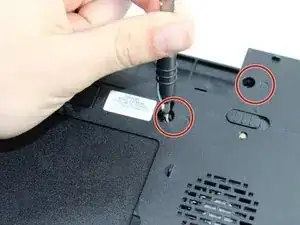

Remove the fifteen 6.0 mm (B6) screws from bottom of laptop using the Phillips #1 screwdriver.
-
Remove the two 5.0 mm (F4) screws from the bottom of the laptop using the Phillips #1 screwdriver.
-
-
-
Turn the laptop back over right-side up with the touchpad facing you.
-

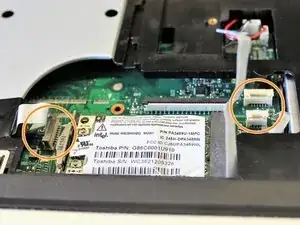

Locate the three ribbon cables that are connected to the motherboard.
-
Gently open the clamps, and remove the cables.
-
-
-
Using the plastic opening tool, gently pry up on the upper casing of the laptop separating it from the lower casing.
-
Slowly work the tool around the sides of the case until the two pieces are completely separated from each other.
-
Remove the upper casing from the bottom casing using your hands.
-

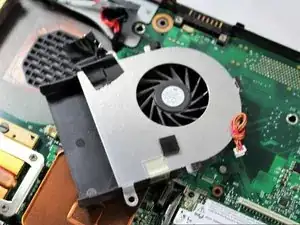

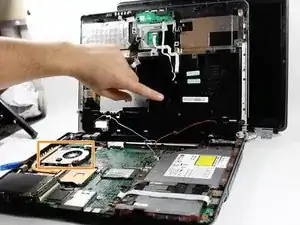

With the laptop separated, you should be able to see the CPU fan.
-
-
-

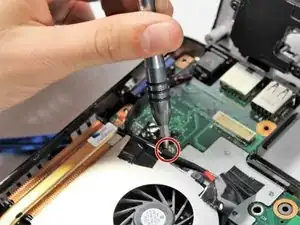

Remove the two 3.0 mm screws on each side of the fan using the Phillips #0 screwdriver.
-

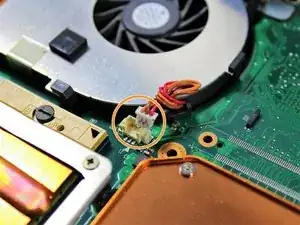

Gently remove the fan's power supply by pulling up on the small white connector (with orange and red wires).
-
Slowly lift up and slide out the fan from the CPU (heat sink) and back of the laptop.
-
To reassemble your device after replacing the fan, follow these instructions in reverse order.
