Toshiba Satellite A105-S4074 Optical Disk Drive (DVD/CD-ROM) Replacement

Geschrieben von: Ryan Bortnick
  • Kommentare: 0
Toshiba Satellite A105-S4074 Optical Disk Drive (DVD/CD-ROM) Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

After diagnosing your Toshiba Satellite A105-S4074, should you conclude that the optical disk drive has failed and will need to be replaced, these easy to follow instructions will guide you through the process.

  1. kQLJdMe5YI5VHLOX
    kQLJdMe5YI5VHLOX
    VkhXHjxwJgQh4yW1

    • To prevent electrical shock, make sure the computer is turned off; and disconnect the power adapter from the computer and electrical outlet prior to beginning any repairs on this device.

    • Turn the laptop upside down with the battery facing you.

  2. fKMaLYgOPI4T2byV
    fKMaLYgOPI4T2byV
    WskdHcNbosiSTOww
    eEOVela2Al2M2YK4

    • Slide both the left and right battery release tabs outwards away from center of the laptop.

    • Right release tab will remain locked in place.

    • While still holding the left release tab, slide the battery towards you using your right hand.

    • Fully remove the battery from the laptop.

  3. S5WgFhEQ5MThJRvG
    S5WgFhEQ5MThJRvG
    rBqs6sN1AxM6PuBN

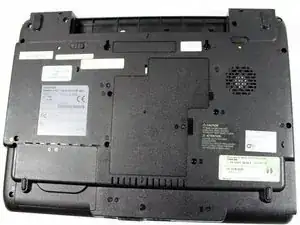

    • Turn the laptop around with the battery slot facing away from you.

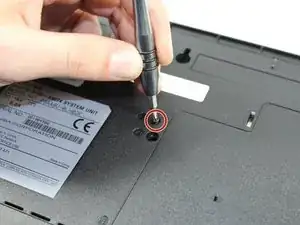

    • Remove the 5.0 mm screw that is holding the optical disk drive internally in place using the Phillips #1 screwdriver.

  4. SLx4D6hqf2ndY5QW
    SLx4D6hqf2ndY5QW
    ZWTTqa25CjYqDpG6
    TrnnHhvbinBbNovm

    • Turn the laptop back over (cover-side up) with the optical disk drive on the right side.

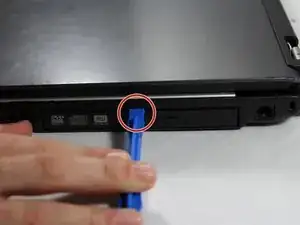

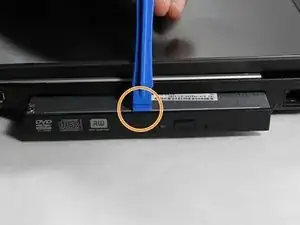

    • With the plastic opening tool, pry the drive out from the top.

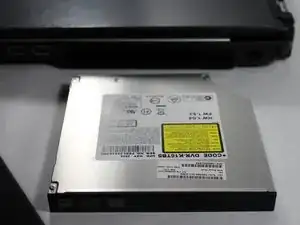

    • Using the opening tool, pull the drive out of the drive bay.

Abschluss

To reassemble your device after replacing the DVD SuperMulti drive, follow these instructions in reverse order.
