Einleitung

The hard drive is the storage space of your computer, containing your music, photos, programs, and documents. It also houses your operating system. Save all the files you want to keep on an external device before installing a new hard drive, as replacing the hard drive basically gives you a new computer.

  1. KqU1FprsE2NlWUsA
    KqU1FprsE2NlWUsA
    EbLDN1YNTbGQFkxh
    • Make sure your computer is turned off and the computer is not plugged in.

    • Turn your laptop upside down, and slide the right release tab outward.

    • Using you left hand, hold the left release tab towards the left side and then pull the battery out.

  2. JY6hfDViDZfESkqh
    JY6hfDViDZfESkqh
    xhVw2QZjiTQ16qDC
    o5N5EeGKLEOUIccP

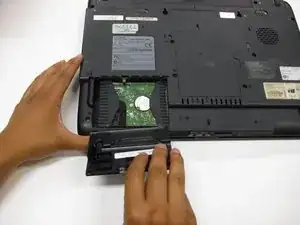

    • Turn the laptop around 180 degrees.

    • Unscrew the 4 mm screw with the Philips #1 screwdriver.

    • Lift and remove the hard drive cover.

  3. ynImVRvRIB6BmCOT
    ynImVRvRIB6BmCOT
    RwDB2CQJ13gPxgZ3
    52jqKSQlkHjfISnR

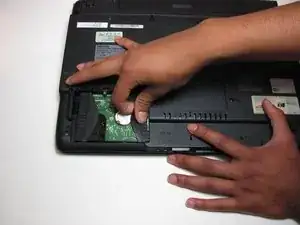

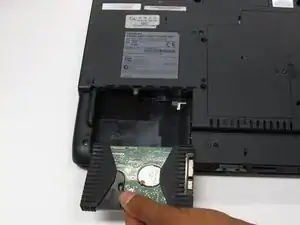

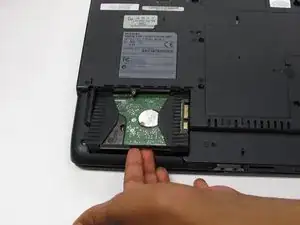

    • Pull on the rubber tab to slide the hard drive to the left.

    • Pick up the near side of the hard drive and pull it out the back.

Abschluss

To reassemble your device, follow these instructions in reverse order.
