Toshiba Satellite A105-S4284 Disc Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If your CDs or DVDs are not running correctly or at all on your computer, then it is either due to the disc drive being dirty, loose parts and/or broken. This guide will show the user how to safely remove the disc drive.

  1. KqU1FprsE2NlWUsA
    KqU1FprsE2NlWUsA
    EbLDN1YNTbGQFkxh

    • Make sure your computer is turned off and the computer is not plugged in.

    • Turn your laptop upside down, and slide the right release tab outward.

    • Using you left hand, hold the left release tab towards the left side and then pull the battery out.

  2. d2HXjnCPHrBOGQA2
    d2HXjnCPHrBOGQA2
    LWkThdOVIMd3MwR2

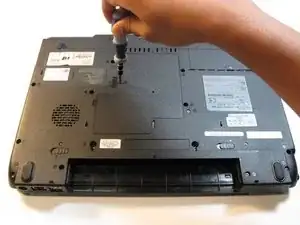

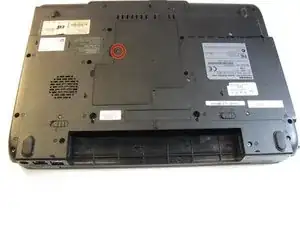

    • Loosen the screw located on the cover of the RAM using Phillips #1 screwdriver.

    • You will not be able to remove the screw from the panel as it is designed to stay in the panel.

  3. aJKWjyYcSELBCMJk
    aJKWjyYcSELBCMJk
    FHQEniOqBaxUn6Ut

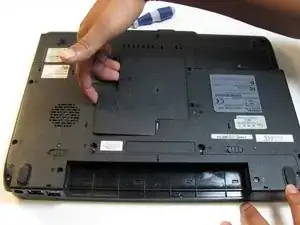

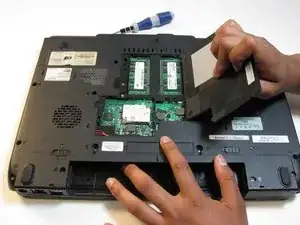

    • With your fingers, carefully remove the middle panel by lifting the edge with the indent.

  4. TQ1PVO5GftBZWAlm
    TQ1PVO5GftBZWAlm
    HARC5tP1Qu2cZlZs

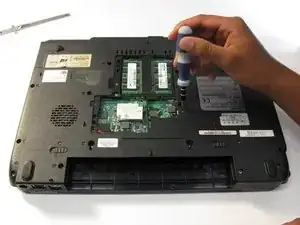

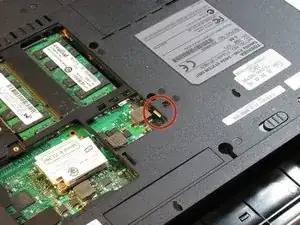

    • Remove the 4.0 mm screw above the small metal tab with a Phillips 00 screwdriver.

  5. xS5EVnjREDnGTUk2
    xS5EVnjREDnGTUk2
    k5HGBRjQO2PkpJKd

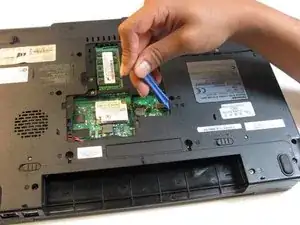

    • Push down on the metal tab under the cover with the plastic opening tool and push the disc drive partially out.

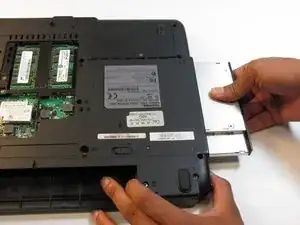

    • Grab the drive and pull it out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
