Toshiba Satellite A105-S4284 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

If your keys are not typing anything or the way they should, then check this guide to see how to safely remove and replace the keyboard input device on the computer. It will also contain detailed pictures on what to expect and watch out for, such as ribbons or wires.

Werkzeuge

Schritt 1

Make sure your computer is turned off and the computer is not plugged in.
Turn your laptop upside down, and slide the right release tab outward.
Using you left hand, hold the left release tab towards the left side and then pull the battery out.

Schritt 2

Remove the lower half of the laptop and lay upper half on its top.

Schritt 3

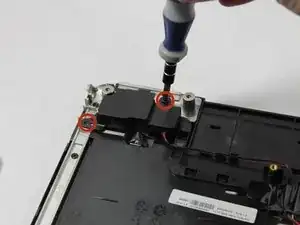

Using the Phillips screwdriver remove the two 4.0mm screws holding each of the speakers housings to the case.

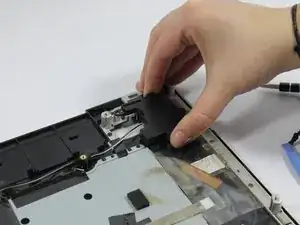

Remove the speakers from the case being careful of the wires.

Schritt 4

The wires for the speakers are color coded.The red and black wires are for the right speaker, and the black and white wires are for the left speaker.

Schritt 5

Flip the laptop over so it is rightside up, and open the laptop all the way so that the screen is horizontal.

Schritt 6

Using the plastic opening tool, pry off the panel above the keyboard, starting near the right front speaker.
Use the plastic opening tool to pop off tabs along the length of this panel.
This may feel like you're about to break something, but as long as you work your way down the panel and don't yank it out, the laptop will be fine.
