Toshiba Satellite A205-S4577 Hard Drive Replacement

Geschrieben von: Daniel Johnson
  • Kommentare: 0
Toshiba Satellite A205-S4577 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 - 5 Minuten

Einleitung

The purpose of this guide is to provide step-by-step instructions for replacing your hard drive. For this process you will need a Phillips #00 screwdriver.

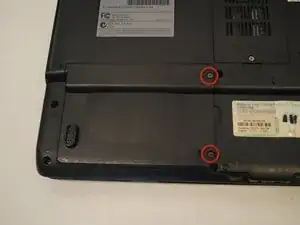

  1. 3fmQKURYV34cDopa

    • Locate the hard drive cover on the bottom, left-hand corner of your laptop.

    • Using a Phillips #00 screwdriver, remove both 4mm screws.

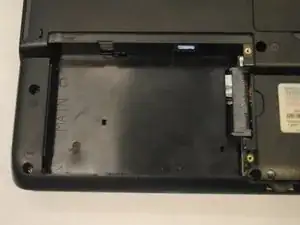

  2. K6YA1TZebPLVZaNg

    • Lift the cover to reveal the old hard drive.

    • Carefully detach the hard drive from the SATA/Power connector.

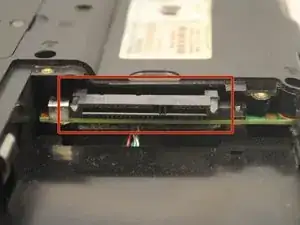

  3. FgaOT5RPlLVTNtd5

    • After removing the old hard drive, place the new hard drive into the bay, and firmly reattach it to the SATA/Power connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
