Einleitung

Whether it is time to upgrade or replace the optical drive, this guide will show the user how to remove the drive from the laptop.

  1. tUrLgWaHFYIoCq2f
    • Locate the two sliding locks indicated in the photo.

    • Slide the right lock (labeled "1") to the right. It will remain in the unlocked position.

    • Slide the left lock (labeled "2") to the left and hold it in place.

  2. 3D3tKXeNI6wNKFDT
    • While holding the left lock, place your finger in the indentation next to the battery and lift the battery out.

  3. XIZBkj4twD4L6IWo
    XIZBkj4twD4L6IWo
    mW4nLfEBwyT1GG5g
    KJ2kBDOdlUCXpYb3
    • Remove the four screws indicated in the photos using a Phillips 00 Screwdriver. Left to right: 6mm button-head, 3mm flat-head, 6mm button-head, 6mm button-head.

  4. R6raETk3eg3sNTl3
    • With your hands, grasp the speaker cover on the edge nearest to the screen.

    • Pry the speaker cover upward.

  5. 6dEm3OeOXXgKnYEL
    • Remove the speaker cover. Your laptop will look like this photo when the speaker cover has been removed.

  6. 5nTysPJF6aZgYBwc
    • Remove the two 4mm flat-head screws indicated in the photo.

  7. cX6DCBSRBD3frDtq
    • Slightly lift and ease the keyboard forward, toward the screen, until the tabs clear the case.

    • When all the tabs are free, slowly lift the bottom of the keyboard while keeping the top of the keyboard angled down. Continue to carefully rotate the keyboard over until you can access the ribbon cable that is still connecting it to the computer.

  8. SxyBwmD5vHyPDISf
    • The Ribbon Cable must be disconnected here to release the keyboard.

    • Using a plastic splunger or the tip of your screwdriver gently push upward on the two black tabs securing the connection.

    • When the black plastic bar running across the cable is unseated you can slowly and carefully pull the ribbon cable free.

    • You can now lift and remove the keyboard.

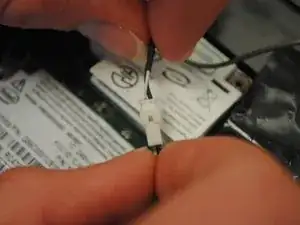

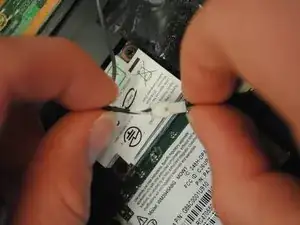

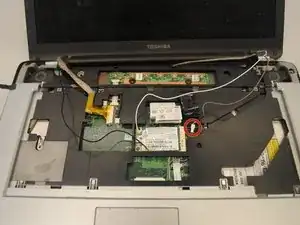

  9. XyfGZruLOq4a4Ime
    XyfGZruLOq4a4Ime
    4W1HMRsl6FYY6FwH
    kCxnSSvxiSR2TWnd
    • Locate the gray wire on the right.

    • Detach the white end by gently pulling each socket away from the other.

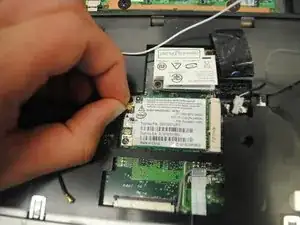

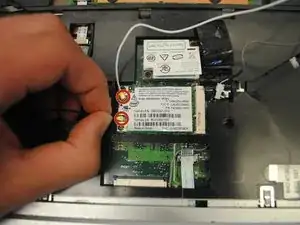

  10. WykVtSUtTs3PhLIk
    WykVtSUtTs3PhLIk
    pf3iCoktnrVonfPH
    • On the left, locate the black and white wires with gold tips on the end.

    • Pull up on the wires to detach them.

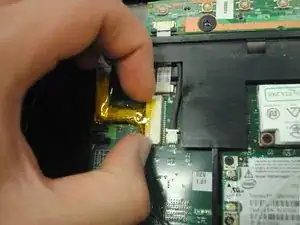

  11. pNlR4ODVlrPKUcGl
    pNlR4ODVlrPKUcGl
    D2ufqBihPVQRGK2I
    GNhytCSnlu11L1mq
    • Locate the thick tan cord on the left.

    • Slide the tan cord as shown to detach it.

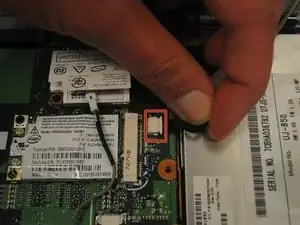

  12. Qdw66xXbIUIrcNjf
    Qdw66xXbIUIrcNjf

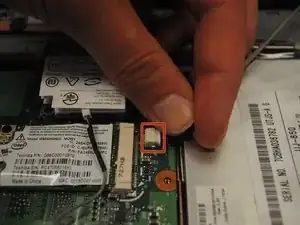

    fpCeNIfvEqGfdNBR
    • On the right, locate the thick black wire with the white rectangular end.

    • Pull up on it to detach it.

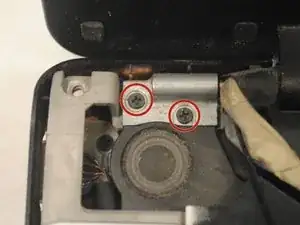

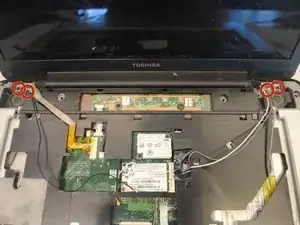

  13. 5MgSZchXNThAPqE5
    5MgSZchXNThAPqE5
    GN2Cp4iIXLypvhrX

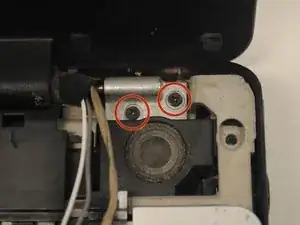

    6YhrIfhpa3sjohFV
    • Remove the four 8mm button-head screws that are located in the top right (2) and top left corners (2) of the front cover. Use a Phillips 00 Screwdriver.

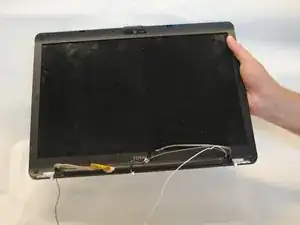

  14. eMdWNuFp4YMwaMsx
    • Once all the wires are detached and screws are removed, pull up on the monitor to remove it.

    There were two additional screws on the back of the laptop I had to remove to get the screen off.

    Dylan Carter -

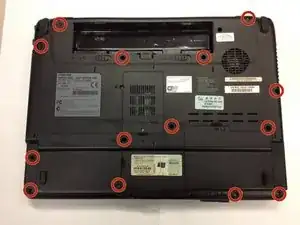

  15. 3mCV6oDdiSnlGJFx
    • Locate the screws that are shown in the image.

    • Remove the fourteen 6mm button-head screws with a Phillips 00 Screwdriver.

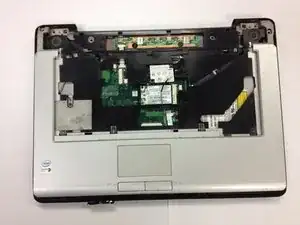

  16. UOqOHTGFxXCCBI4n
    UOqOHTGFxXCCBI4n

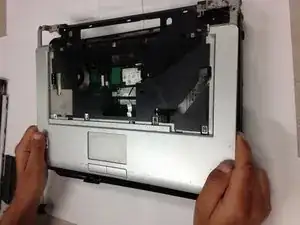

    xVlkfk4itg5aUkHy
    • Lift up on the front cover to remove it.

    There was an additional screw in the front cover to the right of the wireless card that I had to remove; it was already gone in earlier pictures in the walkthrough

    Dylan Carter -

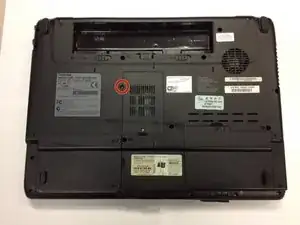

  17. vKoEp5NkMewVFpRR
    • Locate the 4mm flat-head screw. Remove it using the Phillips 00 Screwdriver.

  18. 1IpTAW1q1XpwqLhu
    • Turn the computer over.

    • Locate the optical drive on the right.

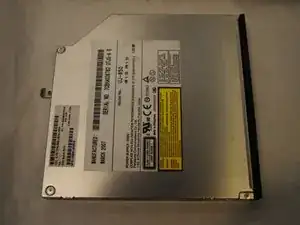

  19. MLbk5narb1lHifMI
    MLbk5narb1lHifMI

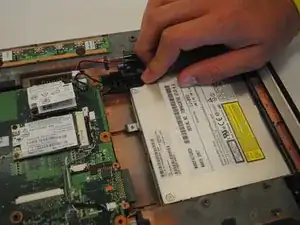

    mF1gbO1FlONxYi3s
    AuDWGVopJHGyky3C
    • Using two fingers, slide the optical drive toward the edge of the computer.

    • Continue to slide the optical drive until it can be removed from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
