Toshiba Satellite A205-S5812 Hard Drive Replacement

Geschrieben von: Kenneth Tynan
  • Kommentare: 0
Toshiba Satellite A205-S5812 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If your laptop begins making strange noises, like clicking or humming, has frequent program crashes or disk errors, or is exhibiting overall strange behavior, use this guide to replace your hard drive.

  1. 4bVaNTwX6E2PSNDF

    • Turn off your laptop before beginning.

    • Turn the laptop over so the base of the laptop faces the ceiling.

  2. GbwsJqhXpZQSN3QX

    • Push the two plastic tabs retaining the battery into the chassis to each respective side. This will push the battery up slightly and release it from the bottom of the notebook.

  3. KpWXfJmCmA5xLd5X

    • Using a finger or small prying device, pull the battery upwards from the recessed area. Then, simply pull the battery out of the notebook and gently set it aside.

  4. JkUtZnFRCcNlI3ga
    JkUtZnFRCcNlI3ga
    wuBUWDoLtLFMRxSq

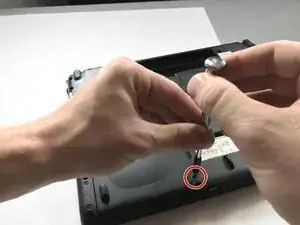

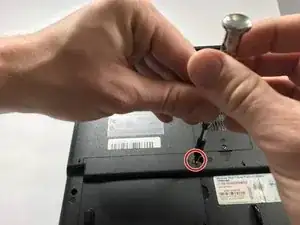

    • Remove the two 3mm Phillips #00 screws holding the hard drive bay cover in place.

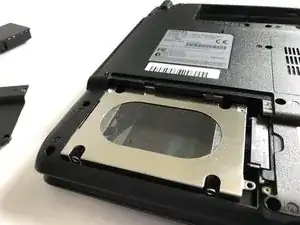

  5. l6BrnMJZU4xLVBRT
    l6BrnMJZU4xLVBRT
    XmUSy61GlEcLjLYH

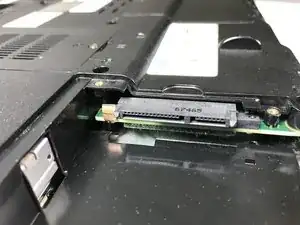

    • Remove the caddy by pulling it towards the left. This will disconnect the hard drive from the SATA interface.

    • Then, simply pull the caddy out of the notebook

  6. hPNDrH2GQPmla4Oi

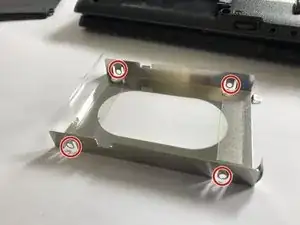

    • The hard drive will be held in the hard drive caddy by four 1.5mm Phillips PH00 screws. Remove these screws to remove the old drive and install a new hard drive or solid state drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
