Toshiba Satellite A210 Motherboard Replacement

Geschrieben von: Devin
  • Kommentare: 0
Toshiba Satellite A210 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

19

Zeitaufwand

Keine Schätzung

Einleitung

Before attempting this guide, please have all required materials and tools. This guide is a long process and requires your full attention in order to properly replace it. When doing each step be careful and follow each step as listed.

  1. WAOAhNaC5EgPygZs
    WAOAhNaC5EgPygZs
    RtbqRiEsNQCBsD1x

    • Unplug the AC adapter and all other auxiliary components from the laptop.

    • Slide the battery lock tab away from the center of the laptop to unlock the battery.

  2. JYhCcR4LB2INKWf2
    JYhCcR4LB2INKWf2
    kpykgGM3uQg5mDwV

    • Slide the battery release tab away from the center of the laptop and hold it.

    • Lifting from the small notch between the two tabs, pull the battery out of the laptop.

  3. YUAqNB15YtQVbDXR
    YUAqNB15YtQVbDXR
    AHOZJlPiJiUGKSH1

    • Remove the screw holding the RAM cover with a PH1 screwdriver.

    • Remove the RAM cover.

  4. wFoLXAPpevcI2Z6W
    wFoLXAPpevcI2Z6W
    qAjrsK5rXE5lRgAM
    CPJJo1K2KPRdAU4X

    • Push outwards on the metal tabs to release the RAM.

    • Remove the RAM. Some force may be needed.

    • Be careful not to touch the gold pins on the RAM chips as there may be a build-up of static electricity. This can fry the parts of the chip that houses memory.

  5. sRaKpPcG4F2dJoHs
    sRaKpPcG4F2dJoHs
    xqhFLheOrXTAlAXS
    TiGcnCkDYQdIIRpB

    • Use a PH0 screwdriver to remove the screw holding the optical drive in place.

    • Using your index finger, push the metal tab inside the RAM bay which is located directly underneath the screw-hole.

    • The optical drive will then slide out.

  6. 3t5TgeELwfTM4Pea

    • Unscrew the 4 highlighted screws with a PH1 screwdriver.

  7. e6PYvQYdVhxI25HQ
    e6PYvQYdVhxI25HQ
    GWCRQQlWqfQN6KP6
    wGAcObMxcbEOVN1D

    • Orient the laptop so that the screen is open and facing you.

    • Slide the plastic opening tool underneath the top edge of the black plastic insert.

    • Pull it off and set aside.

  8. UHOWmWCPbpMTAjKT
    UHOWmWCPbpMTAjKT
    I1jWI3ERTxccxpTl

    • Remove the 2 PH1 screws.

    • Lift the keyboard from the top being carful not to remove it fully. There is still a ribbon cable that connects the keyboard to the laptop.

  9. lE3my51j4WHQPp3K

    • Disconnect the keyboard ribbon cable and remove the keyboard from the laptop.

  10. SEZupuvCIwBWiw1O

    • Close the laptop and flip it over.

    • Unscrew the 11 yellow circled screws with a PH1 screwdriver. These screws are larger in size.

    • Unscrew the 2 red and yellow circled screws with a PH1 screwdriver. These screws are shorter and thicker than the previous.

    • Unscrew the 1 green and yellow circled screw with a PH1 screwdriver. This screw is longer and thinner than the previous.

  11. GG3bWPM4l4udLgH3
    GG3bWPM4l4udLgH3
    nXRUmxabuVFeIHKk
    SZlEAfEGXhI4CQ2H

    • Flip the laptop over and open it so that the screen is facing you.

    • Locate the hinges on either side of the screen, which secure the display to the body of the laptop.

    • Unscrew the 2 screws in each hinge with a PH1 screwdriver.

    • The display is no longer connected to the laptop and could fall. Be careful not to drop it during the next steps.

  12. OXLEmO2fgO6ueViJ
    OXLEmO2fgO6ueViJ
    HDlDRfFEClYlIqRn
    hAvLIJiMY3xpGNXu

    • Unfasten the connectors from the highlighted locations.

    • Disconnect by gently pulling on the fasteners which connect the wires to the laptop.

    • Pulling directly on the wires could cause permanent damage to the connectors or the wires themselves.

    • Unscrew the screw indicated by the yellow circle.

  13. KsXSG3VXbjGNYEdK
    KsXSG3VXbjGNYEdK
    QpwStumUqcwVLJc3

    • Slide the plastic opening tool underneath the edges of the upper casing, which is shown in the images.

  14. CAJPWAkbryZAXmGM

    • The LCD screen can now be removed from the laptop.

    • Lift the upper plastic casing and remove it from the lower half of the laptop.

  15. llIicyusVPZFiefr
    llIicyusVPZFiefr
    SMIU6HdwHLKBpZO2
    Z5FhLQQflZ2RbqYn

    • Unfasten the two connections shown.

    • Unscrew the two screws securing the fan to the laptop. Use a PH1 for the screw that is adjacent to the speaker and a PH0 for the other screw.

    • Lift up the fan and pull the black plastic tab away from the fan housing. Remove the fan.

    • Do not remove the metal fan housing. It is taped to a metal heat-sink and should not be removed.

  16. OvvqpOiJtSZEdgFI

    • First, remove the one screw with a PH1 screwdriver.

    • Next, remove the black connector marked by the yellow box.

  17. Hf52NnDOUKZWK5NT
    Hf52NnDOUKZWK5NT
    KePJZnxkuqSmst3n

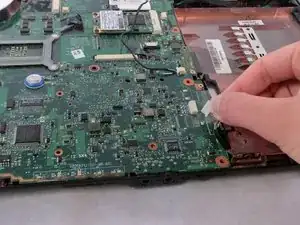

    • Gently pull the the small white ribbon cable from its housing on the motherboard.

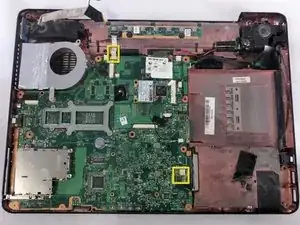

    • Locate and unfasten the small white clip from the motherboard near the bottom right.

  18. nlFsVLZGVstnP54Q
    nlFsVLZGVstnP54Q
    G4bO1UsBjMI4xneD
    okGRT4bjWNwtfCni

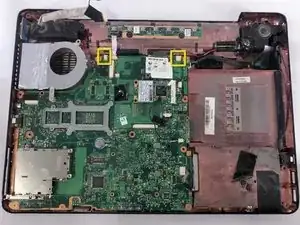

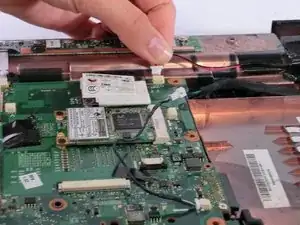

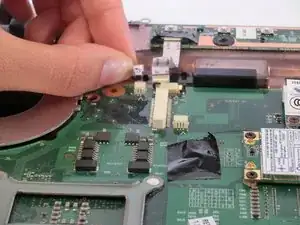

    • Disconnect the two white fasteners that connect the speakers to the motherboard.

  19. FQQg3GdI2rMoYcwU
    FQQg3GdI2rMoYcwU
    fdiWESGqEXVoMOAf
    1POFrkHOJXCxB2Hx

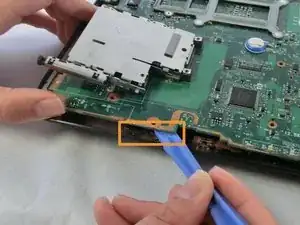

    • Gently slide the plastic opening tool underneath and around the motherboard.

    • Do not force the motherboard out. If the motherboard breaks, it is not repairable. You will have to buy a new one.

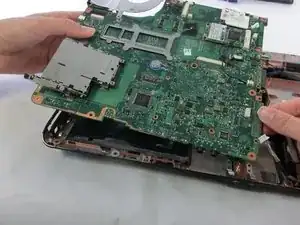

    • After the motherboard is free of the plastic casing, do not pull it all the way out. There is still a connector on the underside of it.

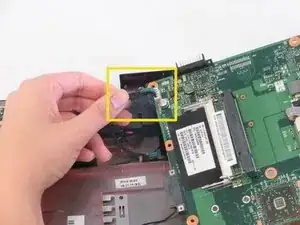

    • Remove the connector on the underside using your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
