Toshiba Satellite A210 RAM Replacement

Geschrieben von: Devin
  • Kommentare: 0
Toshiba Satellite A210 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

In this guide you will learn how to remove the RAM. In the case of a broken or unresponsive RAM a replacement may be required. Before begining this guide you should have all required tools that are listed.

  1. YUAqNB15YtQVbDXR
    YUAqNB15YtQVbDXR
    AHOZJlPiJiUGKSH1

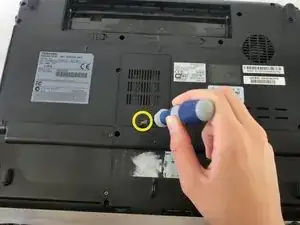

    • Remove the screw holding the RAM cover with a PH1 screwdriver.

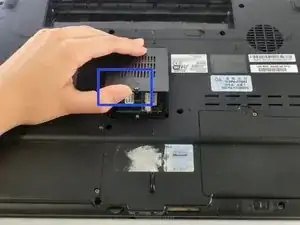

    • Remove the RAM cover.

  2. wFoLXAPpevcI2Z6W
    wFoLXAPpevcI2Z6W
    qAjrsK5rXE5lRgAM
    CPJJo1K2KPRdAU4X

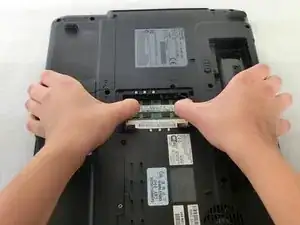

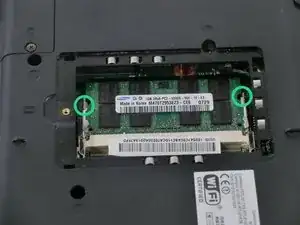

    • Push outwards on the metal tabs to release the RAM.

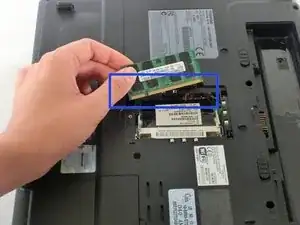

    • Remove the RAM. Some force may be needed.

    • Be careful not to touch the gold pins on the RAM chips as there may be a build-up of static electricity. This can fry the parts of the chip that houses memory.

Abschluss

In order to reassemble your device, follow these instructions in reverse order.
