Einleitung

Replacing a hard drive is a great yet simple fix. Make sure your new drive is the 2.5" laptop hard drive!

  1. fnDWo4LxQlJph1HO
    fnDWo4LxQlJph1HO
    JdiLc5j3O1YT6lfe
    Fo1riHUTByIBBSXW
    • Close the laptop and turn it over so that the base is facing upwards and the spine is facing away from you.

    • Find the battery compartment.

    • Slide the left slider which is just beneath the battery compartment into its leftmost position.

  2. hMKr5L6xBes1Ajfv
    hMKr5L6xBes1Ajfv
    3ENwbgvhg3UtABEq
    kLc6SOPOCO62MXBq
    • Slide and hold the right slider into its rightmost position. Lift the battery out of the compartment.

    • Do not touch the gold nodes inside the compartment.

  3. MPmuZvPmPFadWglO
    MPmuZvPmPFadWglO
    nyLHyAGuATXovMqR

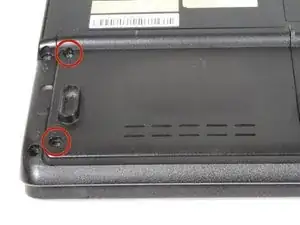

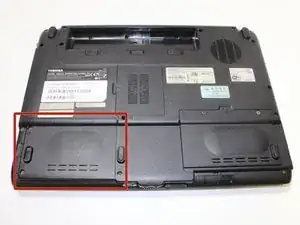

    • Locate the hard drive in the left hand corner, and remove the two 4mm Phillips #1 screws.

  4. okYZFXX1DoCBwIQG
    okYZFXX1DoCBwIQG
    BmZCCVnMJaTi3UPb
    6HHxqFQvlCjvSwUU

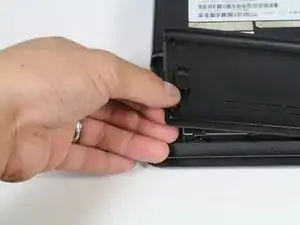

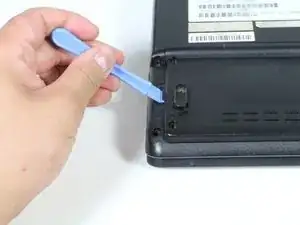

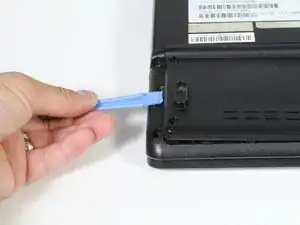

    • Using a plastic opening tool, open the compartment and remove the compartment cover.

  5. QwLGooNYu1Z2nVVN
    QwLGooNYu1Z2nVVN
    G4PxRAPyXTOl4ZHE

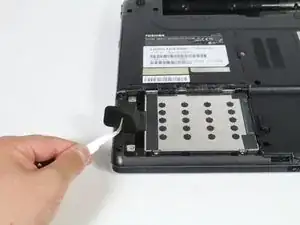

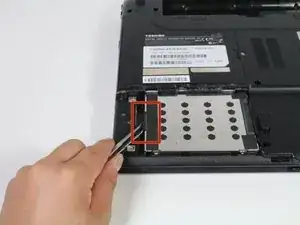

    • Use a pair of metal tweezers to grab the plastic pull-tab that is tucked in underneath the hard drive.

  6. ZHBHNTfJDTqCHVTm
    ZHBHNTfJDTqCHVTm
    otbPIA3iqvqtkBYp
    udyvVFhXtmB2i3xR

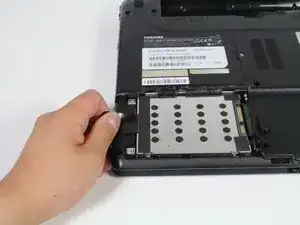

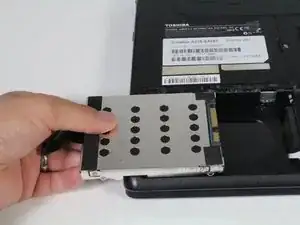

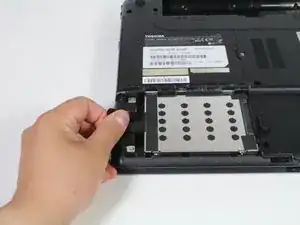

    • Using the plastic pull-tab, carefully pull the hard drive to the left to detach it from its connector.

    • Remove the hard drive assembly from the device.

    • This assembly consists of the actual hard drive and the metal housing. Metal housing is necessary for the reassembly of the device.

  7. tmZm5ylYjH4WGWVH
    tmZm5ylYjH4WGWVH
    esBpVkZpl3XErNTD

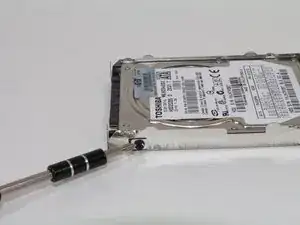

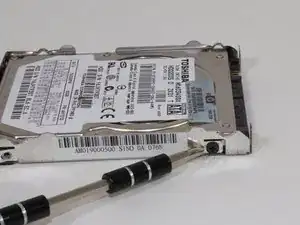

    • Flip over the hard drive assembly and remove two 4mm Phillips #1 screws at the top left and right side of the hard drive housing.

  8. eyKGhafCQYuITZ1S
    eyKGhafCQYuITZ1S
    mcnZb6P1HV1wJhwU

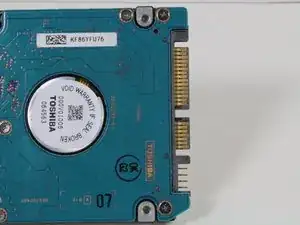

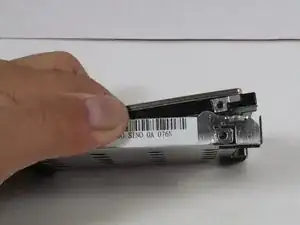

    • Carefully separate the actual hard drive from the hard drive assembly.

    • Do not touch the hard drive's connectors.

Abschluss

To reassemble your device, follow these instructions in reverse order.
