Is your keyboard broken? Got a new one to replace it with? We'll show you how!

  1. fnDWo4LxQlJph1HO
    fnDWo4LxQlJph1HO
    JdiLc5j3O1YT6lfe
    Fo1riHUTByIBBSXW

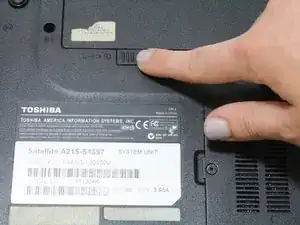

    • Close the laptop and turn it over so that the base is facing upwards and the spine is facing away from you.

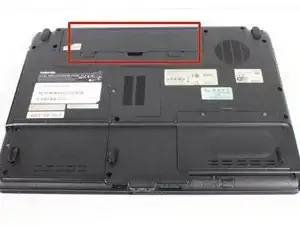

    • Find the battery compartment.

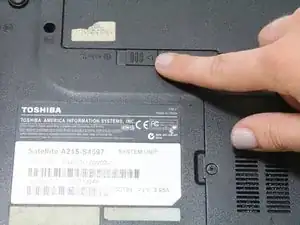

    • Slide the left slider which is just beneath the battery compartment into its leftmost position.

  2. hMKr5L6xBes1Ajfv
    hMKr5L6xBes1Ajfv
    3ENwbgvhg3UtABEq
    kLc6SOPOCO62MXBq

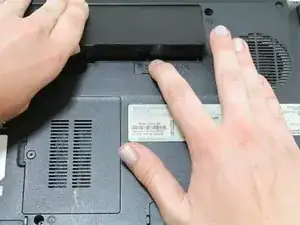

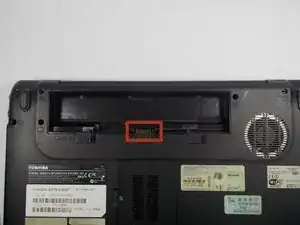

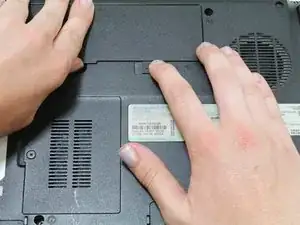

    • Slide and hold the right slider into its rightmost position. Lift the battery out of the compartment.

    • Do not touch the gold nodes inside the compartment.

  3. tleCuDeQBkVTxorU
    tleCuDeQBkVTxorU
    OxXjZGVyy25xRGb4
    hSUt2rYrvChNpVGg

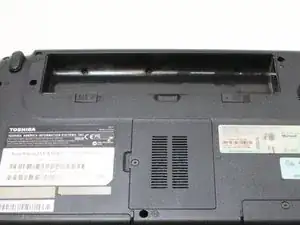

    • Turn computer over so that the battery compartment is facing up and is at the top.

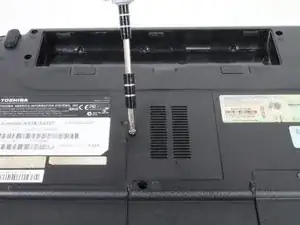

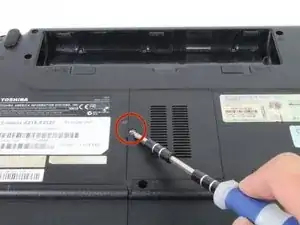

    • Locate and unscrew one captive Phillips #1 screw located at the center.

    • A captive screw cannot be completely removed from the device's component.

  4. XNc1TwNpxIXWyYa6
    XNc1TwNpxIXWyYa6
    QYTOK4ppIyMZpmLA
    1O5FDcYIM4acNHCq

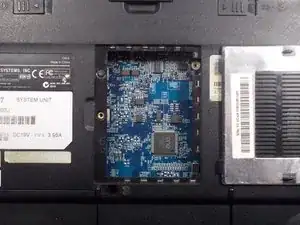

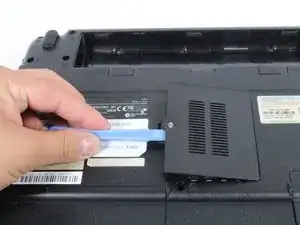

    • Use a plastic opening tool to open the motherboard access cover.

    • Do not touch the motherboard.

  5. hoMMerbUwZOmtv1W
    hoMMerbUwZOmtv1W
    LYKrHSGdVGNiSQhA
    wPeUWKfAUxCCPLmd

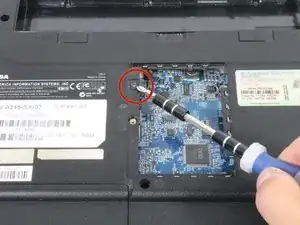

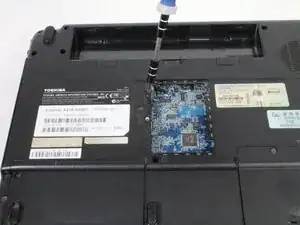

    • Remove one 1.5mm Phillips #1 screw located near the top left edge of the opening.

  6. L2WuaILyqqIejeqw
    L2WuaILyqqIejeqw
    2HcTcV1HyDiFnTUU

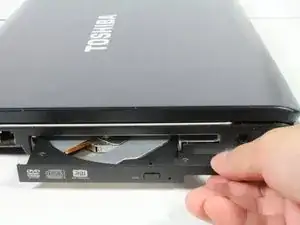

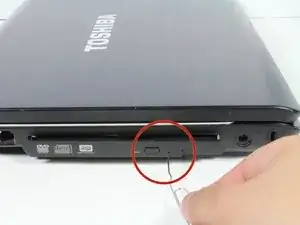

    • Flip your device right side up, and rotate it so that the optical drive is facing you.

    • Insert a paper clip into a manual release switch located to the right of the automatic release button.

    • Optical Drive will not release if you insert the clip diagonally. Make sure to insert the clip straight into the switch.

  7. bePnhaFv1OoKoww3
    bePnhaFv1OoKoww3
    6LujrO3YDC5KQEO6

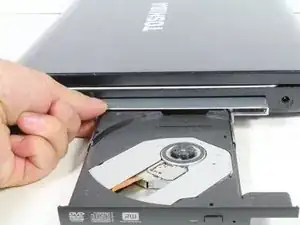

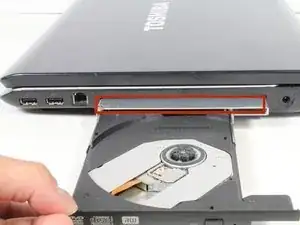

    • Gently pull out the disk drive until you can see the metallic case of the optical drive.

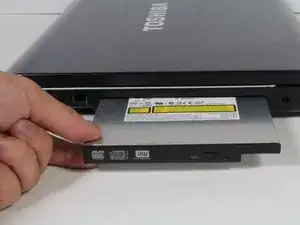

    • Hold the metal case and continue to pull the drive out toward you.

  8. TDrojm5XIqP6KSSJ
    TDrojm5XIqP6KSSJ
    gJqVSHfCTRGANBbv
    SAXAJGYU1W2vRNOA

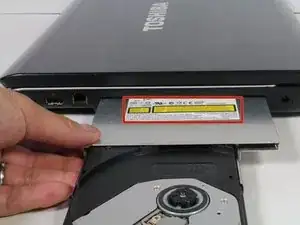

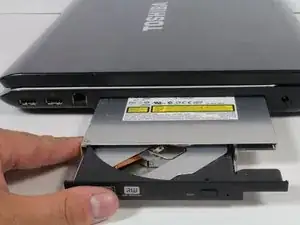

    • Once you see the yellow labels on the disk drive, fully retract the disk mount until you hear a click.

  9. EXwNm5CWk4bAddEJ
    EXwNm5CWk4bAddEJ
    XZQRZVNUAUTBvQkI
    yOkmRMoLshZmwPmA

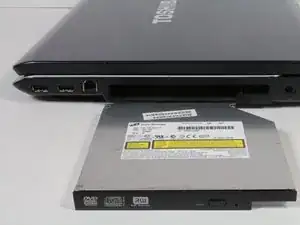

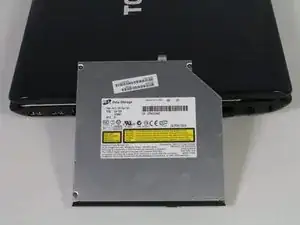

    • Continue to pull the disk drive toward you until it is completely removed from the laptop's housing.

  10. piZYFergtDeyNuMb
    piZYFergtDeyNuMb
    NqlRqRYQxiTEcdsX
    oeHV2NTXSYEI1Dqj
    • Place laptop right side up on a flat and clean surface. Open the laptop.

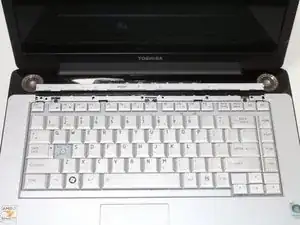

    • Find the strip just above the keyboard and locate the gaps behind the F1, F8, and Insert keys.

    • Remove the strip by sticking your plastic opening tool into these gaps in order, and pulling up.

    this was very difficult. snaps would not release desite using ifixit pry tool. they released then would pop vback on trying to release the remaing fasteners

    Gary M Levin -

  11. 63JUBXCEYOodb4si
    63JUBXCEYOodb4si
    DBCCrLVw5kGo4qgs

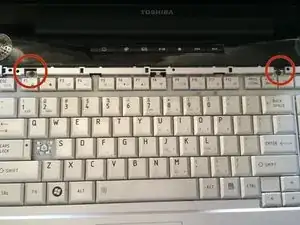

    • Locate the two 2.3mm Phillips #1 screws at the top of the keyboard that attaches the keyboard to the frame behind it.

    • Remove screws.

  12. oT6qpWLDLDNi5Cdm
    oT6qpWLDLDNi5Cdm
    gJoET1MXDiDToEZa
    CC4mNx3g4PKbjBAK

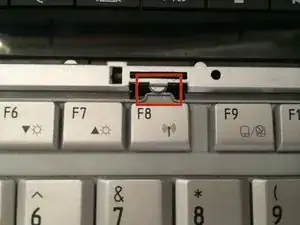

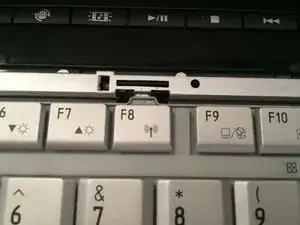

    • Find the latch above the F8 key that overlaps the keyboard.

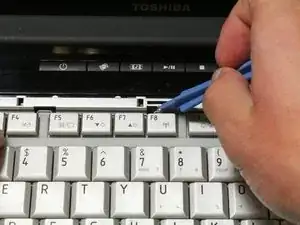

    • Use a plastic opening tool to press the key board's tab downward, until the key board is released.

  13. hVLrRlPJIyHaXgIu
    hVLrRlPJIyHaXgIu
    cGwsg6Y4pOXyXypK

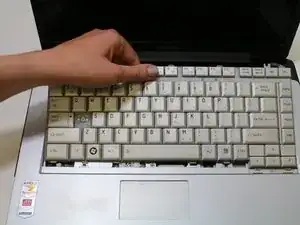

    • Pull the keyboard out by shifting it forward towards the screen and pulling up.

    • CAUTION: Do not pull it out all the way yet. It is still attached to the laptop by a cable.

  14. o1q41EvwJPZePu5P
    o1q41EvwJPZePu5P
    wR63c5ZXGNG1Sdmg
    wbVPWPQQhYNxoxRc

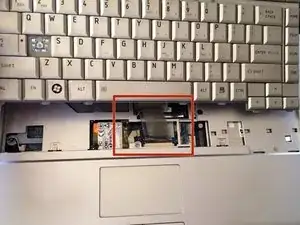

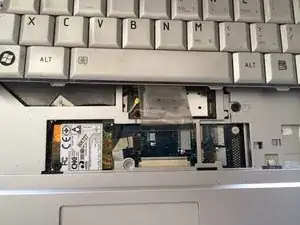

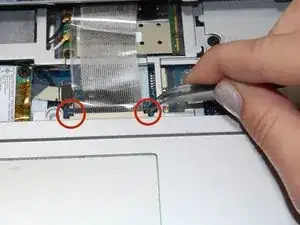

    • Find the ribbon cable that connects the keyboard to the laptop. Look for the black tabs on both sides of cable at the laptop end of the cable.

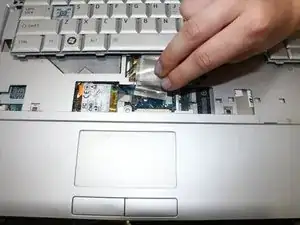

    • Using a pair of tweezers, pull the black tabs on both sides of the cable connector towards the screen until the cable can be pulled out easily.

    • Pull out the cable and completely remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
