Toshiba Satellite A215-S4757 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. 5qhcTO3KyTLHmiPR

    • Locate the RAM storage space on the back of your Toshiba Satellite.

  2. QrcSiIITFCH6QXgD
    QrcSiIITFCH6QXgD
    DdXRxINwkWqc2CUe

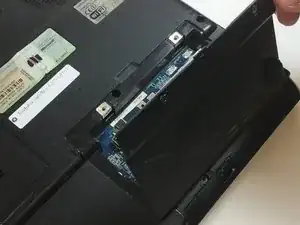

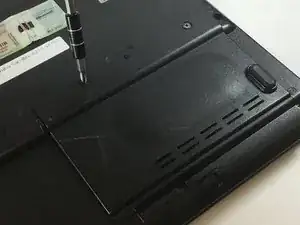

    • Unscrew the two screws holding the plate to the laptop.

    • Gently lift the lid, and remove it form the Satellite.

  3. OJXHYDT6HcGEeuOZ
    OJXHYDT6HcGEeuOZ
    oRmMXlPyTdbE5pZY
    PEbHCj4k3NYoT1Hc

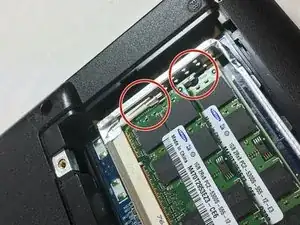

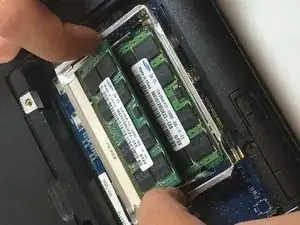

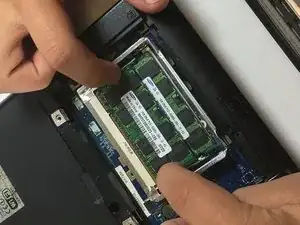

    • Identify the clips on each side of both RAM components that are holding them in place.

    • To remove each component, simply push each clip gently outward until the component pops upward.

  4. 5rGL4F65lSjYhwRl

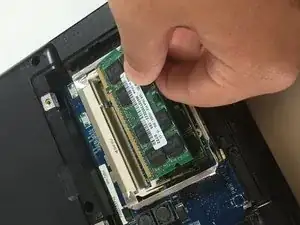

    • Gently pull and remove the RAM component, and repeat for the second component laying underneath the first.

  5. o1IT6MTfgF4wARrG
    o1IT6MTfgF4wARrG
    HZn5mTtkErWNU5KV

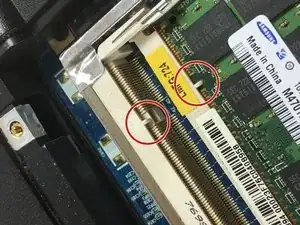

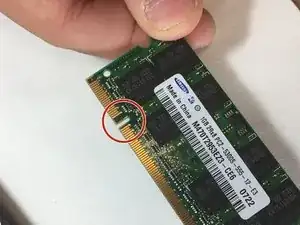

    • Be sure to match each RAM components female insert, with the laptops male insert during reassembly. If you do not reinstall the components correctly your motherboard may fry.

Abschluss

To reassemble your device, follow these instructions in reverse order.
