  1. ehpna63TWfFNhlNW
    • Turn off the computer.

    • Disconnect the charging cable from computer.

    • Failure to unplug the cable could result in electric shock.

    • Flip the computer upside down.

  2. oikcaaCFHBBEVWwN
    • Slide latches labeled #1 and #2, located outside the battery cover, away from each other.

    • Latch #1 will click over and stay while latch #2 will have to be held for battery to release.

  3. qHc6XpN3Q1YMIR4T
    • Gently lift and pull the battery out of the device.

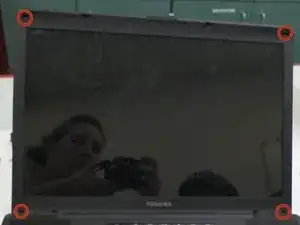

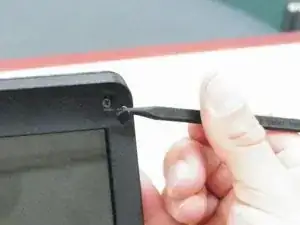

  4. exGkXxeQqVMyOalP
    exGkXxeQqVMyOalP
    M1IgAUMlWRVE3CyN
    • Use tweezers to remove rubber screw covers on 4 corners of frame around screen.

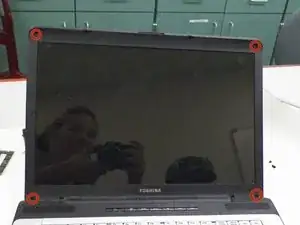

  5. EhnpyToCN2vVjqJj
    • Remove 4 Phillips 5.6 mm screws.

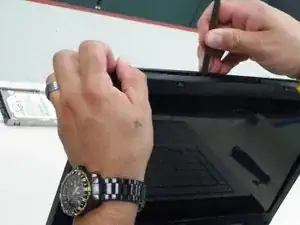

  6. bIbvevk2jIqNAIZC
    bIbvevk2jIqNAIZC
    F4a3DILtZ1OGXEea
    • Use flat side of spudger to pry the top and sides of the frame around screen.

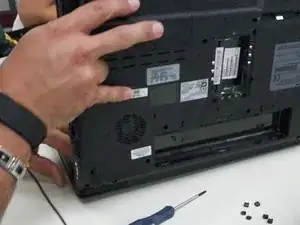

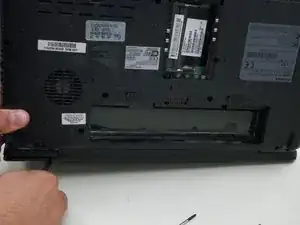

  7. ENL3BSRsmrxhZkSB
    ENL3BSRsmrxhZkSB
    EbkVQtKkbi5ePLbi
    • Turn device onto its screen side to access the bottom of hinge portion of the screen and push bottom piece of frame along device hinge until it loosens.

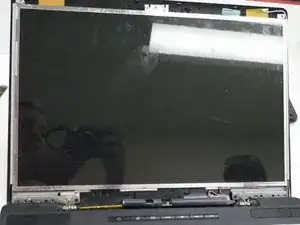

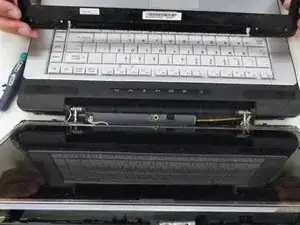

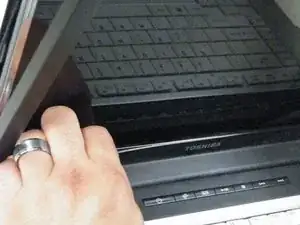

  8. trUwoCFMRb5fqBwE
    trUwoCFMRb5fqBwE
    BLnMXMJEFeqGoKNb
    iJsbbIEvIq2xVi6M
    • Return device to upright position and gently pull frame away from screen.

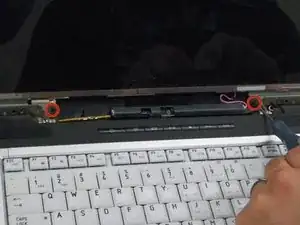

  9. tRmmTqfYPTBCZ6dG
    • Remove 2 Phillips 5.6 mm screws from below screen.

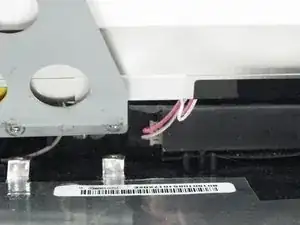

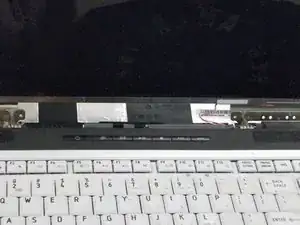

  10. YCi4ypiCnxSOfqwI
    YCi4ypiCnxSOfqwI
    KaZQONbjQEYc1THL
    • Unplug pink and white monitor cable from bottom of screen.

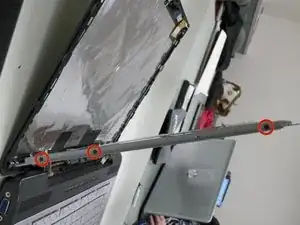

  11. Nly2WbLE3nj3XfYA
    • Remove 3 Phillips 3.2 mm screws from each side of the metal case around screen.

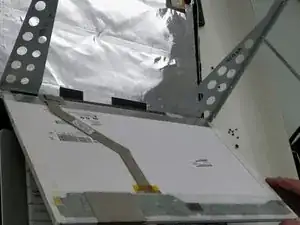

  12. UhV32gMVWTk4MRJQ
    • Pull the screen forward from the top out of the metal frame enough to see the back of the screen.

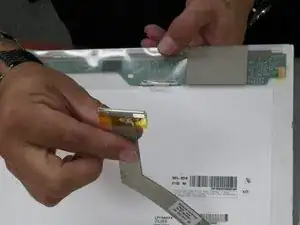

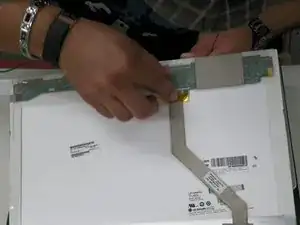

  13. IiNWHGWBqTPKucc4
    IiNWHGWBqTPKucc4
    QBnvMfUcVn3BfmEX
    VbJrFqBRBufQCgZT

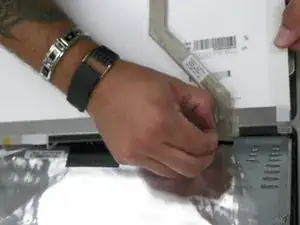

    • Hold the screen with one hand and gently remove the display cable from the back side of the screen.

    • The display cable is typically glued or taped to the back of the screen. Take care to carefully lift the tape and slowly pull cable.

    • To avoid damaging screen ribbon cable, use caution and be gentle. Do not yank or remove with force. Avoid bending the ribbon cable which can cause the wires inside it to snap and break.

Abschluss

To reassemble your device, follow these instructions in reverse order.
