Toshiba Satellite A305-S6848 Hard Drive Replacement

Geschrieben von: Joshua E Hong
  • Kommentare: 1
Toshiba Satellite A305-S6848 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

1 Minute

Einleitung

This guide teaches you how to replace the hard drive in a Toshiba Satellite A305-S6848 laptop.

  1. vZEpwnPim23ilIyV
    vZEpwnPim23ilIyV
    SVJebgSoaGBaIfnF

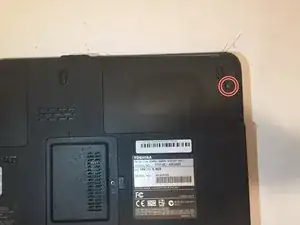

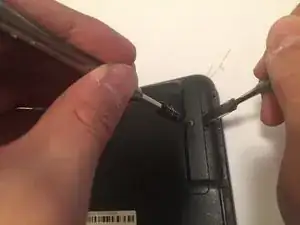

    • Remove the 5.8mm Phillip's #0 screw with Phillip's #0 screwdriver while prying plastic covering up with metal spudger.

  2. ho4NpwylNbZaH2VX

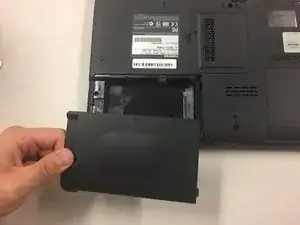

    • Remove plastic covering.

    • Pull up the silver tab to remove the hard drive from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Joshua E Hong

Mitglied seit: 06/11/17

449 Reputation

Ein Kommentar

Note: There are two hard drives in this machine. One has a single screw holding it in place within the compartment, and is very straightforward. The other has two screws. After removing the latter, the drive compartment pulls out, sliding over the now empty screw holes.

Kim McCoy -
