Toshiba Satellite A305-S6848 Keyboard Replacement

Geschrieben von: Joshua E Hong
  • Kommentare: 0
Toshiba Satellite A305-S6848 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide teaches you how to replace the battery in a Toshiba Satellite A305-S6848 laptop.

  1. eoJEkNnQjeR3IBhh

    • Close laptop and turn it upside down.

  2. rwZJGrkNdKrbaDoQ

    • Move the left locking hatch to the left.

    • Hold the right spring latch to the right.

  3. yK2ZCsNvUr1ShrBI

    • Carefully remove the battery from the laptop.

  4. 4XNSQPrSSIV1spTh

    • The keyboard is held in by a locking strip between the screen and the keyboard.

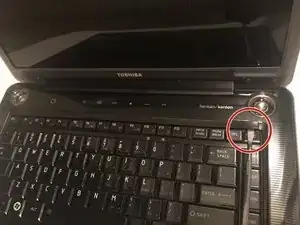

  5. tbbPbkQHWYSU1KDa

    • Use the metal spudger to pry out the right portion of the locking piece just above the DEL key.

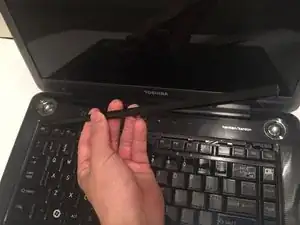

  6. EtlkuVIhy2GOSt4p

    • Use your hand to take out locking strip from the right portion that was pried out.

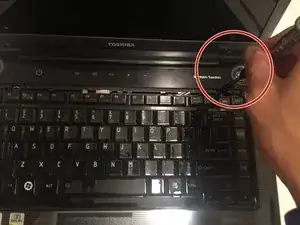

  7. onBfqXPUAu1ar61q
    onBfqXPUAu1ar61q

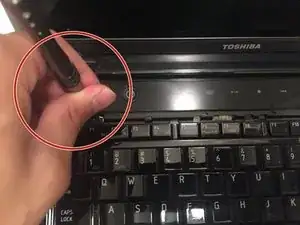

    5kQZvJMPxPxVdRxQ

    • Use the Phillip's #0 screwdriver to take out the two 5.8 mm Phillip's #0 screws from the top right and left corners of the keyboard.

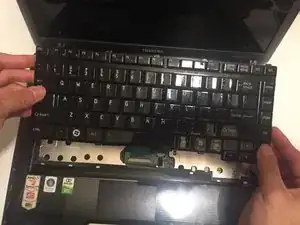

  8. EbXFu6JO2keY4KTN
    EbXFu6JO2keY4KTN

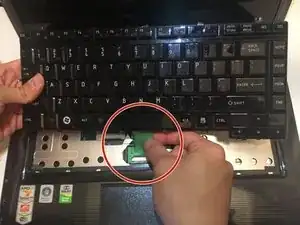

    g6EEcIQb2co2Rgru

    • Lift the keyboard up slightly. Use caution as the keyboard ribbon cable is still attached below the keyboard.

    • Disconnect the keyboard by flipping the locking clip upwards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
