Toshiba Satellite A65-S126 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

This guide provides step by step instructions of how to replace a faulty keyboard.

  1. 1QfAeUOgO2tGtlmN

    • Flip the laptop over so the bottom is facing up.

    • Slide each of the three tabs on the bottom half of the assembly into the unlocked position.

  2. JOaFEw1WeT1hBYKt

    • Gently lift the battery out of the computer.

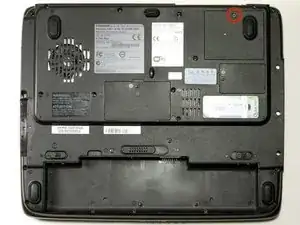

  3. Y5DIuAhlgHGVSCP4

    • Remove the single 3mm Phillips #00 screw that secures the wireless card cover.

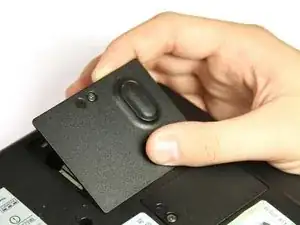

  4. WuYup1Rn4r4ixCIt

    • Remove the WIFI module cover. It will pull right off.

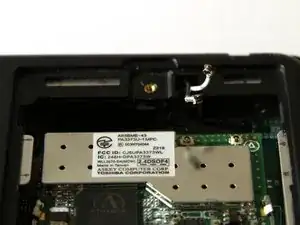

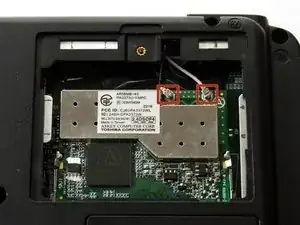

  5. CeExGKNrHRw1RY2X
    CeExGKNrHRw1RY2X
    BrygOc43QQB4oxGn

    • Unplug the white and black wires from the WiFi module.

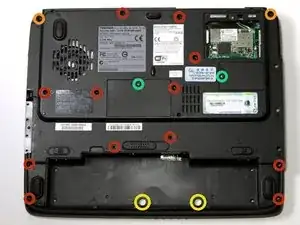

  6. tSEwXtqX6Vg2rCyW

    • Remove the twelve 8mm button head Phillips #00 B8 screws.

    • Remove the two 14 mm button head Phillips #00 B14 screws.

    • Remove the two 10 mm Phillips #00 battery compartment screws.

    • Remove the two 8 mm Phillips #00 screws.

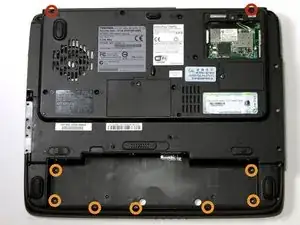

  7. sDgDlvIY5MSwmOLI

    • Remove the seven 4mm flat Phillips #00 screws.

    • Remove the seven 20mm button head Phillips #00 screws.

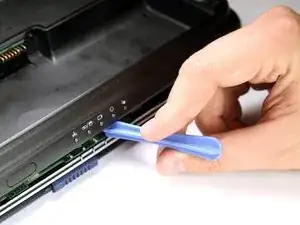

  8. qEWUFnMioAG1sjRJ

    • Use the plastic opening tool to pry the two halves apart.

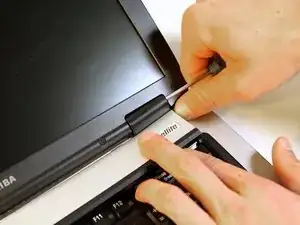

  9. H2yqmZuPb4lxcS11

    • Using a screw driver for assistance, pop open the plastic cover and snap it off of the hinges. Repeat on the opposite side.

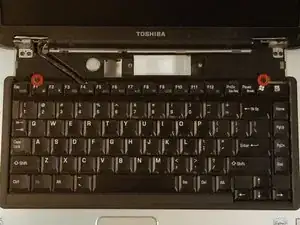

  10. dkmvSZHvUB4ZmHiZ

    • Remove the two 3mm Phillips #00 screws.

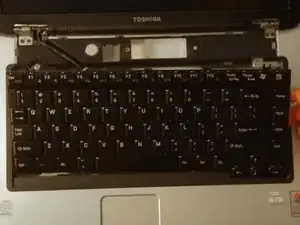

  11. mwvLpLW2huN1PAIN

    • Slide keyboard out and away from the upper assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
