Toshiba Satellite A65-S126 Optical Drive Replacement

Geschrieben von: Geoff Wacker
  • Kommentare: 1
Toshiba Satellite A65-S126 Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

This guide provides step by step instructions of how to replace a faulty optical drive.

  1. 1QfAeUOgO2tGtlmN

    • Flip the laptop over so the bottom is facing up.

    • Slide each of the three tabs on the bottom half of the assembly into the unlocked position.

  2. JOaFEw1WeT1hBYKt

    • Gently lift the battery out of the computer.

  3. Y5DIuAhlgHGVSCP4

    • Remove the single 3mm Phillips #00 screw that secures the wireless card cover.

  4. WuYup1Rn4r4ixCIt

    • Remove the WIFI module cover. It will pull right off.

  5. CeExGKNrHRw1RY2X
    CeExGKNrHRw1RY2X
    BrygOc43QQB4oxGn

    • Unplug the white and black wires from the WiFi module.

  6. tSEwXtqX6Vg2rCyW

    • Remove the twelve 8mm button head Phillips #00 B8 screws.

    • Remove the two 14 mm button head Phillips #00 B14 screws.

    • Remove the two 10 mm Phillips #00 battery compartment screws.

    • Remove the two 8 mm Phillips #00 screws.

  7. sDgDlvIY5MSwmOLI

    • Remove the seven 4mm flat Phillips #00 screws.

    • Remove the seven 20mm button head Phillips #00 screws.

  8. qEWUFnMioAG1sjRJ

    • Use the plastic opening tool to pry the two halves apart.

  9. A5O4yrtRWf4xfkkH

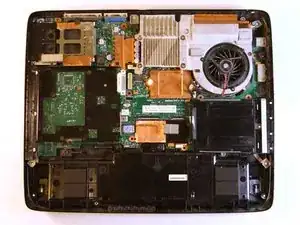

    • Orient the bottom assembly as displayed.

  10. udOWyAfRGCBCCYwa
    udOWyAfRGCBCCYwa
    1lYbhbsnmqXZPUQY

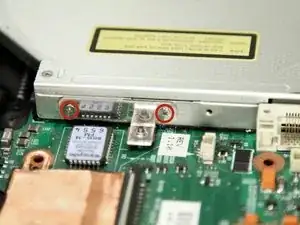

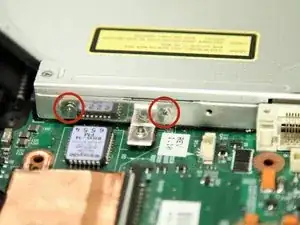

    • Remove the two 3 mm Phillips #00 screws.

  11. th21dL6Mp4ZEtCZd

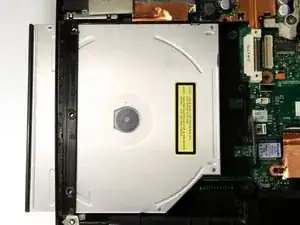

    • Slide the optical drive out of the laptop through the opening on the left side of the bottom assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
