Toshiba Satellite A660-ST3NX2X Hard Drive Replacement

Geschrieben von: Cassie Pickett
  • Kommentare: 0
Toshiba Satellite A660-ST3NX2X Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 4 Minuten

Einleitung

This replacement guide is to walk you through a hard drive replacement on your Toshiba Satellite A660-ST3NX2X. Before starting this replacement, make sure you have a replacement hard drive that is made for this computer and model. Also, make sure the computer is powered off and completely shut down before completing this replacement.

  1. nvlpUfRWZSK5KOAF

    • Unplug all cables and other devices from the computer before starting this replacement.

    • Turn the computer over, so the screen is facing down and the battery is positioned in front of you.

  2. NwJZcyHJOL4FPBrl
    NwJZcyHJOL4FPBrl
    TPXUHU32xsZttfjE

    • Locate the two sliding tabs on either side of the battery.

    • Using both hands, place one finger on each tab and slide them to the sides and away from each other.

  3. GAFNZOHkPk32e4no
    GAFNZOHkPk32e4no
    sVVBgrFFqHvoWjOk
    CIBx6Esg53ARcdui

    • Pull the battery out, keeping the tabs pushed to the side.

    • The right tab on this laptop stayed pushed to the right without needing to be held in place.

  4. STIPbDRXEZTDX1Ub

    • Unplug all devices from your computer and power down the device completely.

    • Flip the computer over so the screen is facing down.

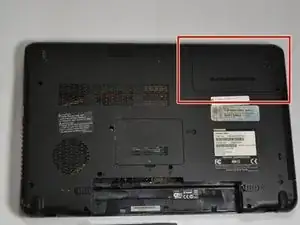

    • In the image, the hard drive will appear to be in the top right corner where the box indicates.

  5. QqeVpe12nNePCmvx
    QqeVpe12nNePCmvx
    j2RuJSCwWdeG3QR2

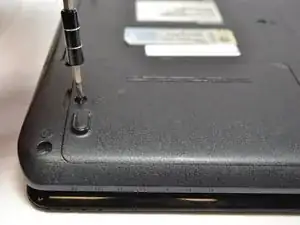

    • Use a J00 bit to unscrew the single 4mm screw that holds the hard drive cover in place.

  6. QfGFWlkPPpgAQ6HU
    QfGFWlkPPpgAQ6HU
    WMRD2RPWKbWAxq2K

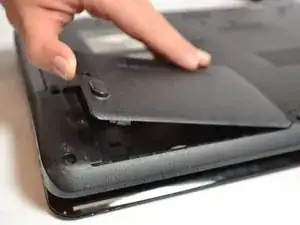

    • Remove the cover that holds the hard drive in place.

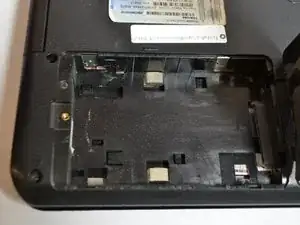

    • Remove the hard drive.

    • This computer contains no hard drive, therefore we are unable to show the physical removal of it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
