Toshiba Satellite A660-ST3NX2X Optical Disc Drive Replacement

Geschrieben von: Megan Murrell
  • Kommentare: 0
Toshiba Satellite A660-ST3NX2X Optical Disc Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 - 3 Minuten

Einleitung

This guide explains how to replace the optical disc drive in the Toshiba Satellite A660-ST3NX2X laptop.

  1. usUuqmFwhSJAY2M5
    usUuqmFwhSJAY2M5
    Z2vWHsg4EtMJdNwI

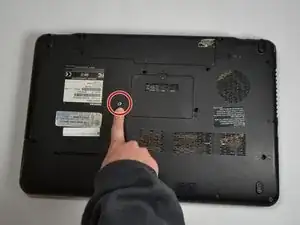

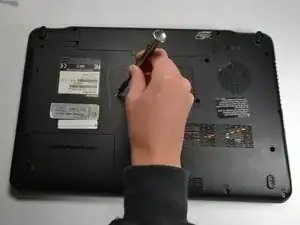

    • Remove the 5mm Phillips screw from the bottom of the laptop.

  2. ZK4fBU5ivNLCUYBN
    ZK4fBU5ivNLCUYBN
    lBQAZtF3FNaklLX3

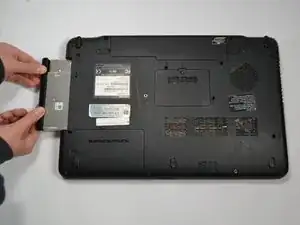

    • Remove the optic disk drive from the computer.

  3. FSZGd1adbJROR2WS
    FSZGd1adbJROR2WS
    COygRbjHeqFtsTQE

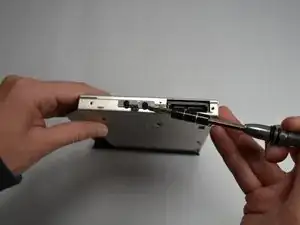

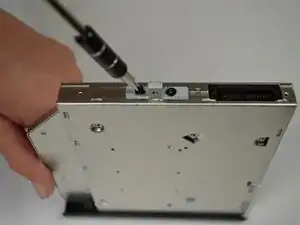

    • Remove the two 4mm Phillips screws.

    • Remove the rectangular metal plate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
