Toshiba Satellite A660-ST3NX2X RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 5 Minuten

Einleitung

This replacement guide is to walk you through a RAM replacement on your Toshiba Satellite A660-ST3NX2X. Before starting this replacement, make sure you have a replacement RAM stick that is made for this computer and model. Also, make sure the computer is powered off and completely shut down before completing this replacement.

Werkzeuge

JIS Driver Set

Ersatzteile

PC2-6400 4 GB RAM Chip

Schritt 1

Unplug all cables and other devices from the computer before starting this replacement.
Turn the computer over, so the screen is facing down and the battery is positioned in front of you.

Schritt 2

Locate the two sliding tabs on either side of the battery.
Using both hands, place one finger on each tab and slide them to the sides and away from each other.

Schritt 3

Pull the battery out, keeping the tabs pushed to the side.
The right tab on this laptop stayed pushed to the right without needing to be held in place.

Schritt 4

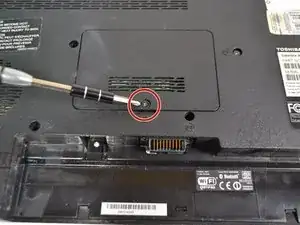

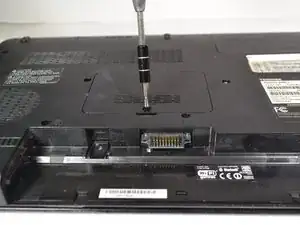

Use a J00 bit to unscrew the single 4mm screw that leads to the RAM Memory compartment.

Schritt 5

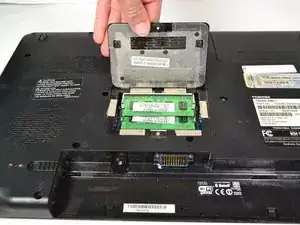

Open the hatch that holds the RAM cards.

Schritt 6

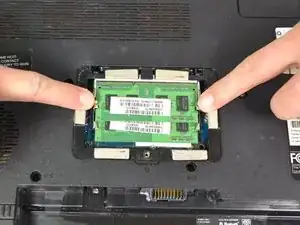

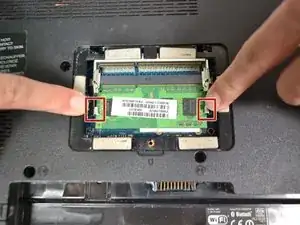

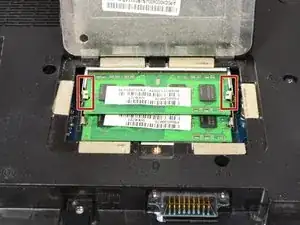

Pull apart the two metal tabs that are holding the RAM cards in place.

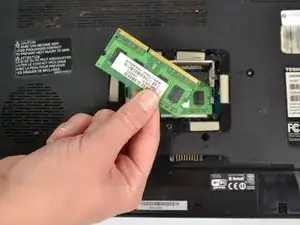

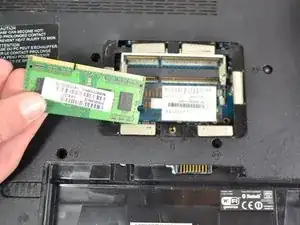

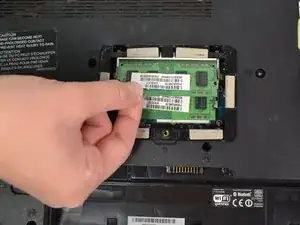

You will feel the card pop up from its held position, indicating it can safely be pulled out.
