Einleitung

In order to replace the keys on your Toshiba Satellite A665-S5170, you will need one pair of tweezers. Remember to treat the parts of the key (such as the key cap and the key pad) gently, as they may break if too much pressure is used to remove them.

Werkzeuge

  1. WHHRdIPwANZLtwME
    WHHRdIPwANZLtwME
    hN6VD4XsKUAcl2aX

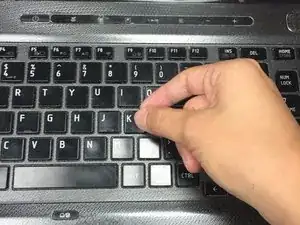

    • Insert something thin, such as your fingernail or a credit card, beneath the corner of the key cap (the part of the key that is normally visible).

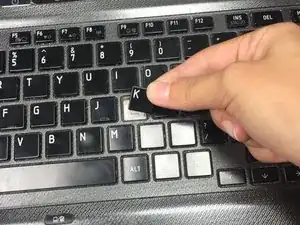

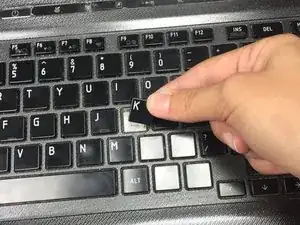

    • Pull up on the key cap until it pops free of the keyboard.

  2. SCLBTjYVFtYaFnVR
    SCLBTjYVFtYaFnVR
    tiwVTcVH4mSOUwKN
    jneHYX4hN22CEdc2

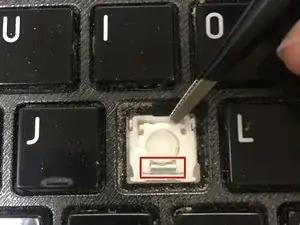

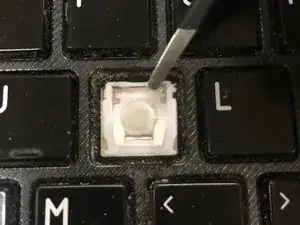

    • Grip the upper edge of the key pad--the white hinge beneath the key cap of the key--with your flat nose pliers.

    • With the edge of the key pad pinched firmly in your pliers, gently pull up with your pliers until the top left and right corners of the key pad pop out of place.

    • Still holding the key pad with your pliers, slide the key pad towards the bottom of the key panel until the bottom of the key pad slides out of its hinge.

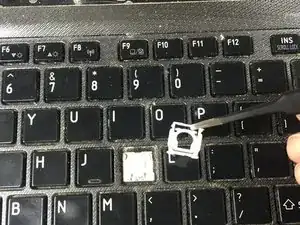

    • Lift the key pad fully from the computer with your pliers.

Abschluss

To reassemble your device, follow these instructions in reverse order. Be sure to read the notes when reassembling the device.
