Einleitung

This guide may be useful for fixing dead pixels, cracked screens, and other problems with the display. You will need the iFixit plastic opening tool, a Phillips #1 screw driver, and your new Toshiba Satellite A75-S226 Display Assembly.

  1. MFDyeJyY4oHGV3Ln
    MFDyeJyY4oHGV3Ln
    EUWyLk3XcKZrpbtq
    • Remove the 5.75 mm screw from the cover panel.

    • Turn the laptop over with the screen facing down.

  2. YbPKI3amQ1Rm3oxY
    • Lift up the cover panel using a plastic opening tool.

  3. REx5lH5ORy1WBGQq
    REx5lH5ORy1WBGQq
    63MvNZBRVZ15xqHB

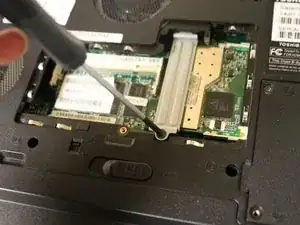

    • Remove the 5.64 mm screw from the bottom of the crossing bar.

    • Remove the crossing bar.

  4. fih24ysSZyjpuKD6
    fih24ysSZyjpuKD6
    sXhPTGPbZBZEqnaH

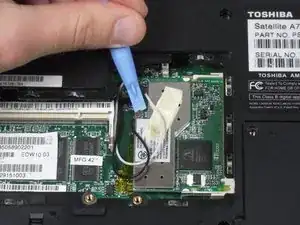

    • Use a plastic opening tool to disconnect the black and white antenna cable's connectors from the Wi-Fi card.

    • Note that the black wire is connected to the port that is labeled main.

  5. N4ZXjcjKmM5ABD4I
    N4ZXjcjKmM5ABD4I
    LLtDcM2CY5JGsbwK
    • Use fingers to push the clips away from memory card.

  6. 3enlaghWVtFFlnTe
    • Use fingers to remove the Wi-Fi card.

  7. DQQEX5R3VuuuDSMZ
    DQQEX5R3VuuuDSMZ
    EovTqu6lhI1Rgf4q
    6tF1CaqUfNspD53Z

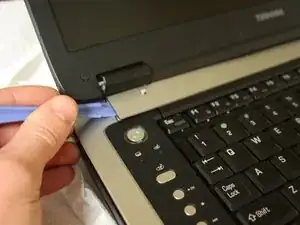

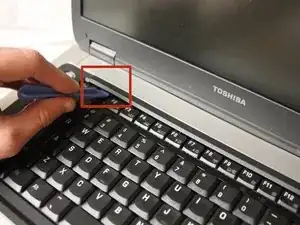

    • Use the plastic opening tool to lift up the top panel all the way along the keyboard until it loosens.

    • It may be helpful to first pry at the rear of the hinge covers (not shown) to release them. Then Insert the plastic opening tool underneath the top panel's sides and then front edge.

  8. E6SIqotbAmFpMvMI
    E6SIqotbAmFpMvMI
    XZLeTRFypmMKKJ11

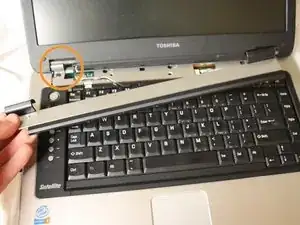

    • Remove the top panel by popping the panel out the top left socket, then do the same with the right side.

  9. K1psOEBT6prn5Sq2
    K1psOEBT6prn5Sq2
    U6LHlWbTDchyYuA2
    2WNs1VrSr12Y4OLi

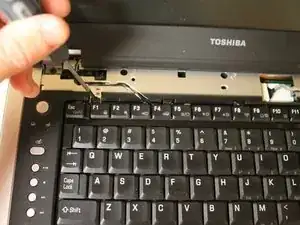

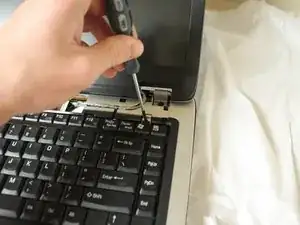

    • Remove the two 3.67 mm screws from the top corners of the keyboard.

  10. 4YOyaXMIHXdORCBJ
    • Use fingers to lift up the keyboard from the top.

    • Do not try to remove the keyboard completely because it is still attached to the motherboard.

  11. JheEhn56wNugpKTQ
    JheEhn56wNugpKTQ
    IYoDAWiqsxsEDaFr
    A3HQyJACuJ1i5WwM

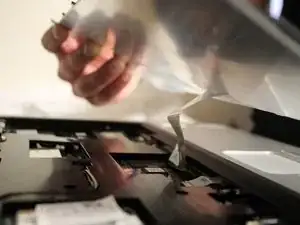

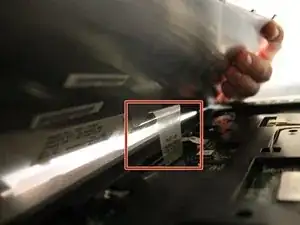

    • Remove the cable connecting the keyboard with the motherboard.

    • Be aware of the locking tabs on each side of the ribbon-cable connector—they slide back about 2mm to free the cable.

    • Lift up and remove the keyboard.

  12. bPdSoOB3fgBYmTLs
    bPdSoOB3fgBYmTLs
    uOOMNFAcZHCLHW3J

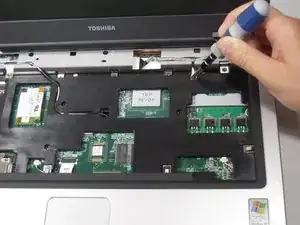

    • Remove the 3.76mm screw from the ground wire.

  13. oINWjRvtrCdbB6KV
    oINWjRvtrCdbB6KV
    CCslGLhf1BDtVWSU

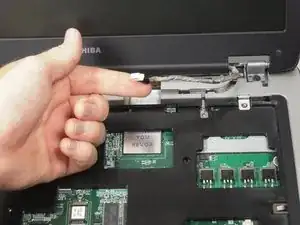

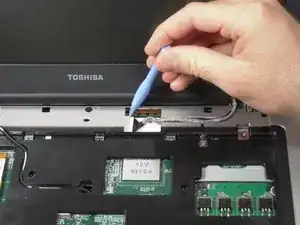

    • Use the plastic opening tool to remove the wire.

  14. L5NaMmFYPHxYIfUZ
    L5NaMmFYPHxYIfUZ
    FstkIihkQu43xEX1

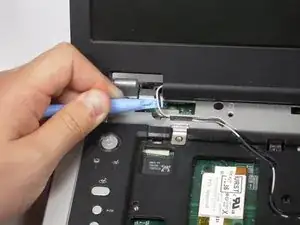

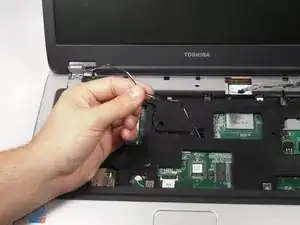

    • Gently pull the black and white wires out of the upper case.

    • Do not pull the wire too much, or you can damage the wire.

  15. JRtjtJtdPxFmmwAW

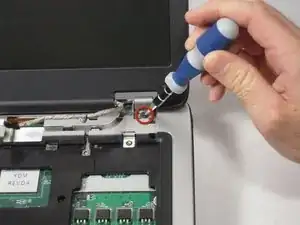

    • Remove the 8.6 mm screw on left side of upper case.

  16. PoI2mSopCoZPVxWJ
    PoI2mSopCoZPVxWJ
    LZYAJCgBIcGDSNOG

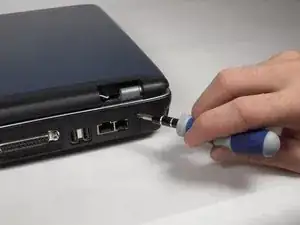

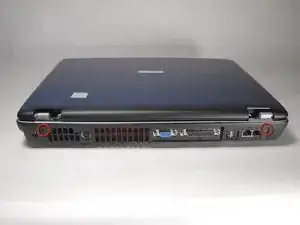

    • Remove two 8.6 mm screws on the back corners of the laptop.

  17. 6c6tFRfGyEM3jrY2

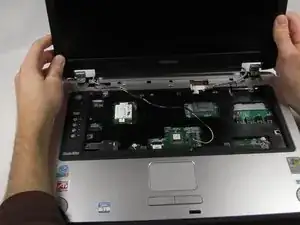

    • Lift up the display assembly to remove it.

    one of the 14 screws identified in the diagram of step 25 was previously removed with the CD drive

    Steve -

Abschluss

Replace the old display assembly with your new assembly. To reassemble your device, follow these instructions in reverse order.
