Toshiba Satellite A75-S226 Speakers Replacement

Make sure battery-lock is in the unlock position.

Slide button to the left.

Lift battery out of the computer.

Remove the two 5.62 mm screws from the optical drive cover.

Remove the optical drive cover.

A plastic opening tool or a fingernail may be helpful in lifting it from its groove.

Using the inset divot, push the optical drive out of the laptop to remove.

Remove the 8.6 mm screw.

Push the bottom left corner of the CD Drive until the drive protrudes from the case.

When a good amount of the CD Drive is showing on the right side, gently pull it out completely.

Remove the 5.75 mm screw from the cover panel.

Lift up the cover panel using a plastic opening tool.

Remove the 5.64 mm screw from the bottom of the crossing bar.

Remove the crossing bar.

Use a plastic opening tool to disconnect the black and white antenna cable's connectors from the Wi-Fi card.

Use fingers to push the clips away from memory card.

Use fingers to remove the Wi-Fi card.

Use the plastic opening tool to lift up the top panel all the way along the keyboard until it loosens.

Remove the top panel by popping the panel out the top left socket, then do the same with the right side.

Remove the two 3.67 mm screws from the top corners of the keyboard.

Use fingers to lift up the keyboard from the top.

Remove the cable connecting the keyboard with the motherboard.

Lift up and remove the keyboard.

Remove the 3.76mm screw from the ground wire.

Use the plastic opening tool to remove the wire.

Gently pull the black and white wires out of the upper case.

Remove the 8.6 mm screw on left side of upper case.

Remove two 8.6 mm screws on the back corners of the laptop.

Lift up the display assembly to remove it.

Use the Phillips screwdriver to remove the two 3.7 mm screws from the battery compartment.

Then remove the fourteen 8.6 mm screws from the bottom of the case.

Use the screwdriver to remove six 8.6 mm screws from the top of the case.

Use the plastic opening tool to remove the two speaker wire connectors and the trackpad connector from the motherboard.

With the plastic opening tool, pry around the entire laptop to separate the upper case.

Lift up the upper case to remove.

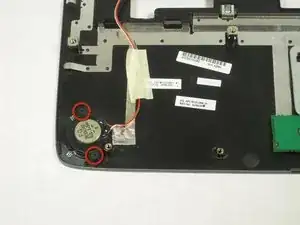

Locate the two speakers on the underside of the upper case.

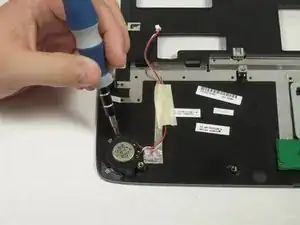

Remove two screws from each speaker with the Phillips Screwdriver.

Lift the speakers from the case to remove.
