Toshiba Satellite A85-S107 15" Back Panel Replacement

Geschrieben von: Shravani Kakarla
  • Kommentare: 0
Toshiba Satellite A85-S107 15" Back Panel Replacement

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

1 - 3 Minuten

Einleitung

If you need to access your RAM and Wireless Card, this guide will help you to open up the back panel.

  1. yqKLC5GepqiYHMYN

    • Power off the laptop.

    • Disconnect the power cable from the laptop. If you do not, electric shock may result.

  2. Ax5HFwtkhNYmVuIr

    • Flip the laptop over and orient it such that the battery faces towards you and the front faces away from you as shown in the diagram.

    • Unlock the battery by sliding the tab shown to the right.

    • This tab will latch into place.

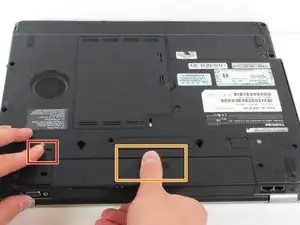

  3. vZInJahZB5rFGb1o

    • Slide the tab shown to the left and remain holding it.

    • This tab does not lock into place like in the first step.

    • Place your thumb on the grips of the battery as shown.

    • While holding onto the grips, pull the battery towards you and away from the laptop.

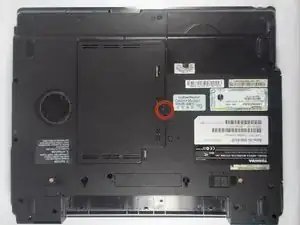

  4. t6MZxXlyZpbyqlwY
    t6MZxXlyZpbyqlwY

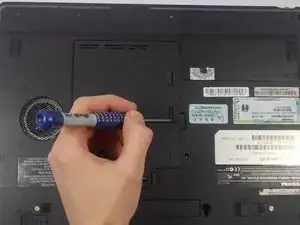

    1ZqT6ZwohcuYVRuM

    • Loosen this 5 mm Phillips #0 screw found in the center of the lower case.

    • The screw will not come out completely, it will stay connected to the center plate.

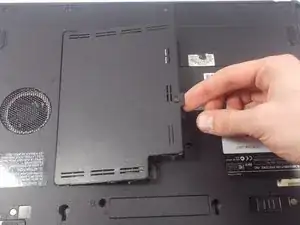

  5. klsQtxUOEs6iES4c

    • Remove the center plate by lifting it and sliding it to the right.

    • If the back panel is difficult to remove and feels like it is going to break, DO NOT force it. Check to confirm that the screw is loose before attempting again.

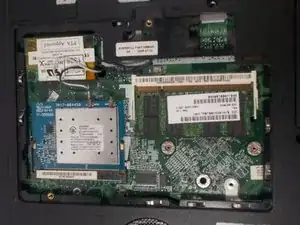

  6. qWqhL5MmF2aLCJNA

    • The computer should be open with many of the internal components shown. You can now access the RAM, and wireless card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
