Toshiba Satellite C50D-A Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

7 Minuten

Einleitung

Here, using a Phillips screwdriver, and a plastic opening tool, you will learn how to clean the fan in your computer.

  1. 4gDuPpXCMrta6FLH

    • Click button 1 to the unlocked position.

    • This button will have a 1 by it.

  2. vsCOpKQUpTLmdZJB
    vsCOpKQUpTLmdZJB
    LIPHYffRGCEliOOq

    • Push and hold button 2 to the left.

    • As you push button 2 to the left position, simultaneously lift up the battery pack.

    • This button will have a 2 by it.

  3. TX2eGgXKABWCenwL
    TX2eGgXKABWCenwL
    bXiwqCBa3yXPTyqH

    • Using the Phillips #1 screwdriver, remove the eleven 2.5mm screws.

  4. ZIYrIcmBBTsNCwlv

    • Remove the one 2.5mm Phillips #1 middle plate screw.

  5. 1Y4vXDAreKQsemOg

    • Lift up the middle vent panel.

    • Set the panel to the side.

  6. lODaSQfMPLJrtdHE
    lODaSQfMPLJrtdHE
    SbdGOB5RUUFbccNq
    4adcW5b3VmbggS6H

    • Using the plastic opening tool, remove the outer panel and set to the side.

    • Be careful not to break the back of the computer.

  7. JvqOM4YIgINKQO1i
    JvqOM4YIgINKQO1i
    qSYlSpgPkcjpWR65
    owl15b6dKxGYnpkX

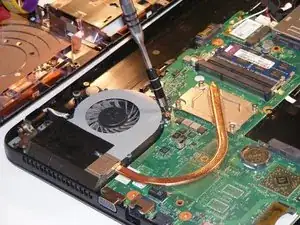

    • Using a Phillips #1 screwdriver, remove the one 1.5mm screw.

  8. A21LkfCUbtvTUFoT

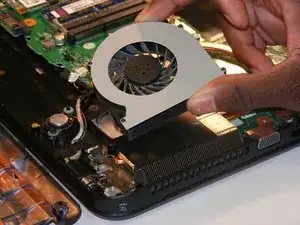

    • Lift the fan up and blow compressed air or replace with a new one.

    • Blow compressed air into the spirals in the middle of the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
