Toshiba Satellite C50D-A Power Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

8 - 10 Minuten

Einleitung

In this guide, you will use a pry tool and a Phillips screwdriver to get to the power jack in order to replace or clean it. Should your power jack be defective or damaged, you can replace it with a new one.

  1. 4gDuPpXCMrta6FLH

    • Click button 1 to the unlocked position.

    • This button will have a 1 by it.

  2. vsCOpKQUpTLmdZJB
    vsCOpKQUpTLmdZJB
    LIPHYffRGCEliOOq

    • Push and hold button 2 to the left.

    • As you push button 2 to the left position, simultaneously lift up the battery pack.

    • This button will have a 2 by it.

  3. TX2eGgXKABWCenwL
    TX2eGgXKABWCenwL
    bXiwqCBa3yXPTyqH

    • Using the Phillips #1 screwdriver, remove the eleven 2.5mm screws.

  4. ZIYrIcmBBTsNCwlv

    • Remove the one 2.5mm Phillips #1 middle plate screw.

  5. 1Y4vXDAreKQsemOg

    • Lift up the middle vent panel.

    • Set the panel to the side.

  6. lODaSQfMPLJrtdHE
    lODaSQfMPLJrtdHE
    SbdGOB5RUUFbccNq
    4adcW5b3VmbggS6H

    • Using the plastic opening tool, remove the outer panel and set to the side.

    • Be careful not to break the back of the computer.

  7. WrwkTCjQ1Eof5bfJ

    • Locate the power jack at the back, right-hand side next to the USB port.

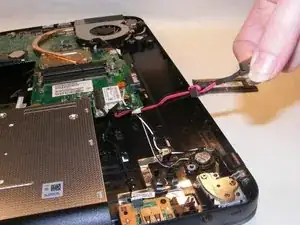

  8. T1i3obStgOm41aYR

    • Carefully unhook it from the attachment sites.

Abschluss

To reassemble your device, follow these instructions in reverse order.
