Toshiba Satellite C50D-A RAM Replacement

Geschrieben von: Amber van Solingen
  • Kommentare: 0
Toshiba Satellite C50D-A RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

7 Minuten

Einleitung

In this guide, you will learn how to replace the RAM in your computer, using a screwdriver and a plastic opening tool.

  1. 4gDuPpXCMrta6FLH

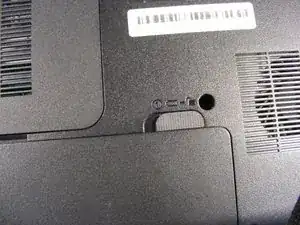

    • Click button 1 to the unlocked position.

    • This button will have a 1 by it.

  2. vsCOpKQUpTLmdZJB
    vsCOpKQUpTLmdZJB
    LIPHYffRGCEliOOq

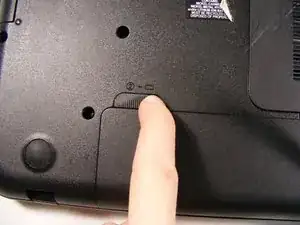

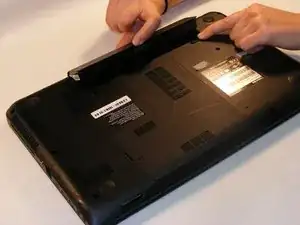

    • Push and hold button 2 to the left.

    • As you push button 2 to the left position, simultaneously lift up the battery pack.

    • This button will have a 2 by it.

  3. TX2eGgXKABWCenwL
    TX2eGgXKABWCenwL
    bXiwqCBa3yXPTyqH

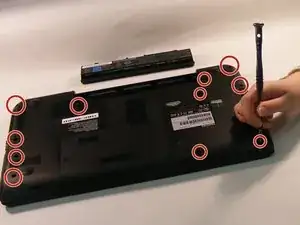

    • Using the Phillips #1 screwdriver, remove the eleven 2.5mm screws.

  4. ZIYrIcmBBTsNCwlv

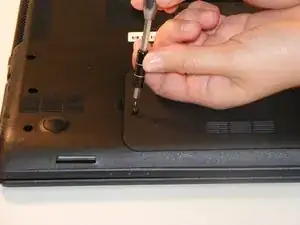

    • Remove the one 2.5mm Phillips #1 middle plate screw.

  5. 1Y4vXDAreKQsemOg

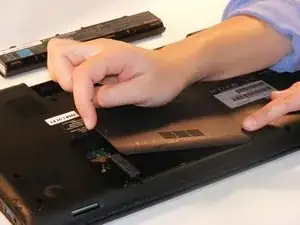

    • Lift up the middle vent panel.

    • Set the panel to the side.

  6. lODaSQfMPLJrtdHE
    lODaSQfMPLJrtdHE
    SbdGOB5RUUFbccNq
    4adcW5b3VmbggS6H

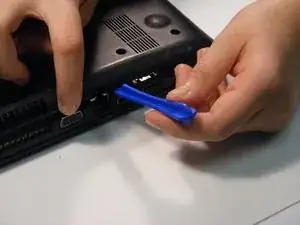

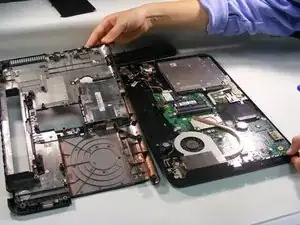

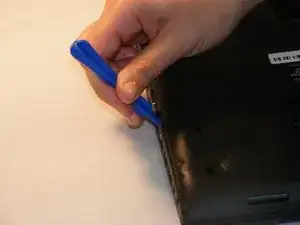

    • Using the plastic opening tool, remove the outer panel and set to the side.

    • Be careful not to break the back of the computer.

  7. AwHnBWO2Wtn1jcBZ

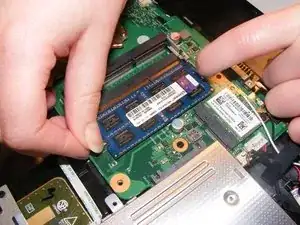

    • Using your fingers, unclip the two side clips.

  8. tQGUwnCNOkgniSYV
    tQGUwnCNOkgniSYV
    jXLkjxVKvScrUpGR

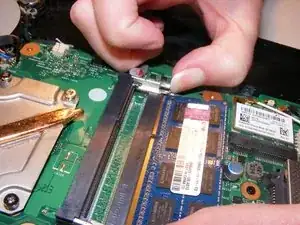

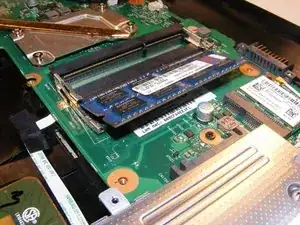

    • The RAM should now be at a 30 degree angle.

    • Using your fingers, unclip the top two clips.

    • The RAM should just pop out. You can remove it with your fingers.

    • This will apply to either top or bottom RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
