Toshiba Satellite C55-A5286 Optical Drive Replacement

Geschrieben von: Nicole Zellers
  • Kommentare: 1
Toshiba Satellite C55-A5286 Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to remove or replace the optical disc drive of the Toshiba Satellite C55-A5286 laptop. A Phillips screwdriver of head size PH0 is required for this guide.

  1. q6u4RAMQxcuhugSh

    • Unplug the AC adapter and all other auxiliary components from the laptop

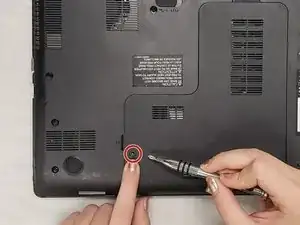

  2. 6IwsnoR5lg11uWpF
    6IwsnoR5lg11uWpF

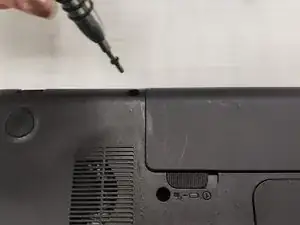

    DGcFCboWJIvZxndc

    • Unscrew the only screw (5 mm) that is holding on the removable back panel and remove the back panel.

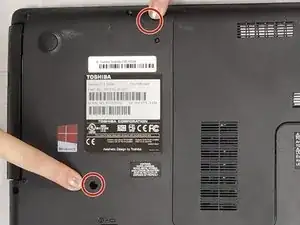

  3. TCTCbACcgO66TCcX

    • Remove the two 5-mm screws near the disk drive on the back panel. These two screws are above and below the manufacturer’s sticker.

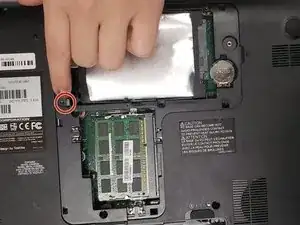

  4. jdYxBBWsQwxTw3aG

    • Under the back panel, remove the 4-mm screw holding the disk drive in place.

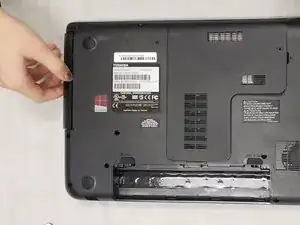

  5. CUgYctvkfgNDPYY5
    CUgYctvkfgNDPYY5

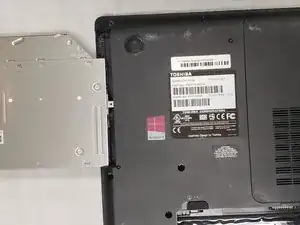

    EoHBaNqHWk6IoaAW

    • Carefully slide the optical drive out of its place in the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
