Einleitung
A guide on how to replace the fan on your Toshiba Satellite C55-B5200 laptop.
Werkzeuge
-
-
Turn the laptop off and remove all sources of power.
-
Flip the laptop over so that way the bottom is facing towards you.
-

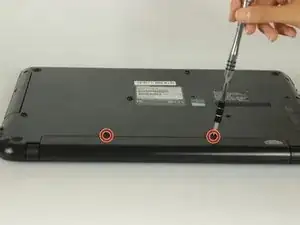

Remove the two 6.6mm Phillips #0 screws from the battery.
-
-
-

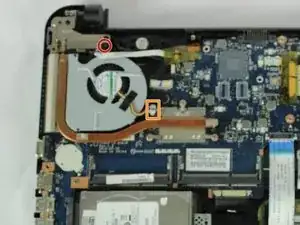

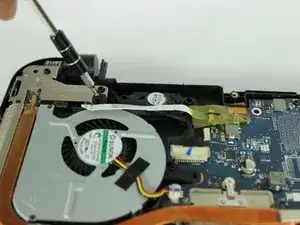

Remove the single 4.6mm Phillips #0 screw securing the fan.
-

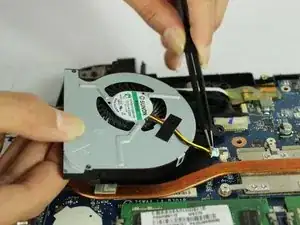

Use a pair of tweezers to unplug the fan from the motherboard.
-
Pull the fan out.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
