Toshiba Satellite C55-B5200 RAM Replacement

Geschrieben von: Pablo Andrade
  • Kommentare: 1
Toshiba Satellite C55-B5200 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

How to replace the RAM on a Toshiba Satellite C55-B5200 laptop.

  1. lXqMhSMh1jsaDNu2

    • Turn the laptop off and remove all sources of power.

    • Flip the laptop over so that way the bottom is facing towards you.

    • Remove the two 6.6mm Phillips #0 screws from the battery.

  2. pGR2rHSmITOT5rWx

    • Pull the battery out of the laptop.

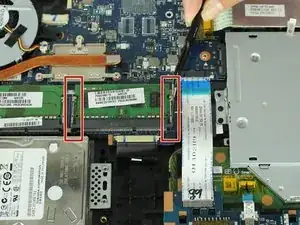

  3. y3FXuDamYIbMIuME

    • Flex the metal retaining clips on the side of the RAM away from one another.

    • If done correctly, the RAM will pop out of its lock.

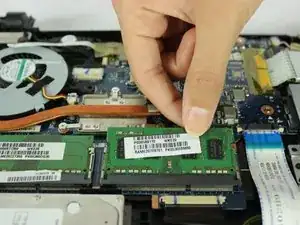

  4. FHssXOOAa1CWGUJt

    • Pull the RAM out of the socket to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
