Toshiba Satellite C55-B5302 CD Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This is a simple guide on how to replace the CD Drive in the Toshiba Satellite C55-B5302 laptop. The part needed for the replacement can be found here. Be sure to have the proper tools as well as the necessary parts needed to complete this guide.

  1. Bs4MupwGFm5FkRJp

    • Make sure to completely shut down the laptop using the power button.

  2. N5KU1AGYr6RV6q5L
    N5KU1AGYr6RV6q5L
    vaKTGbPgEUqxXNGT

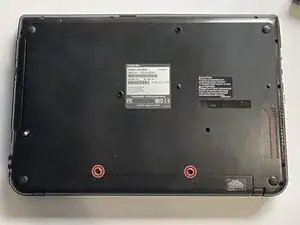

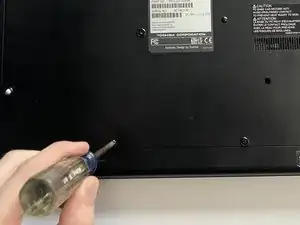

    • Using the Phillips #1 screwdriver, unscrew the two 7mm screws near the battery.

  3. xLQ1VkCERBSiWQSD
    xLQ1VkCERBSiWQSD
    1mQlrVeGESdJlWun

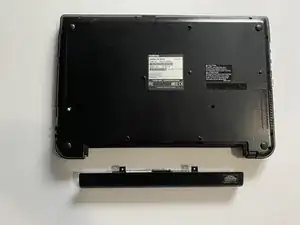

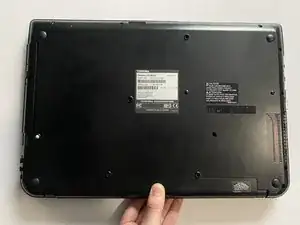

    • Pull on the battery to remove it from the laptop.

  4. cVqpJBEcObUnZDkL
    cVqpJBEcObUnZDkL
    GEoiFFAr12DxCqSR

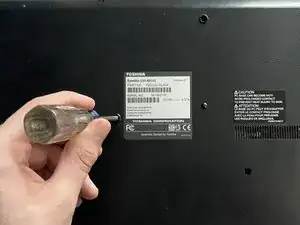

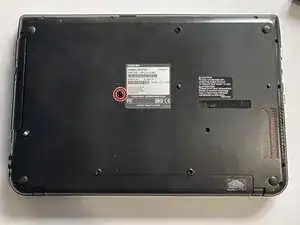

    • Using the Phillips #1 screwdriver, unscrew the 7mm middle screw.

  5. 64WgIvxwuehYcZTK
    64WgIvxwuehYcZTK
    yH6J4LRNey1BSCE2

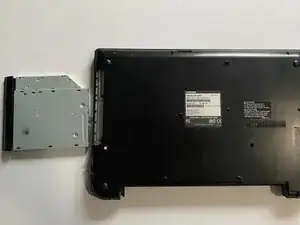

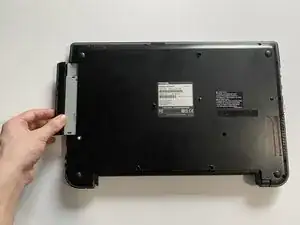

    • Pull on the CD Drive to remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
