Toshiba Satellite C55-B5302 Hard Drive Replacement

Geschrieben von: Jeff Sims

Kommentare: 0

Toshiba Satellite C55-B5302 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 - 15 Minuten

Einleitung

Before starting this process you will need to remove the battery and take off the cover. It's easier than it looks and only requires a Phillips #0 screwdriver and a plastic opening tool. Expect to take about 10 minutes for this process from start to finish.

Werkzeuge

Schritt 1

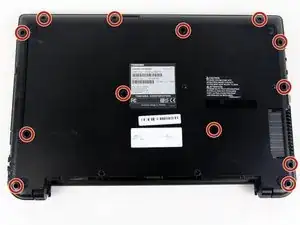

Flip laptop upside down so you can see the screws.

Schritt 2

Using the Phillips #0 screwdriver, remove the two 7 mm screws from the back casing.

Schritt 3

Pull the battery from the back of the laptop for removal from the laptop.

Schritt 4

Remove the remaining 7 mm screws on the back panel of the laptop with a Phillips #0 screwdriver.

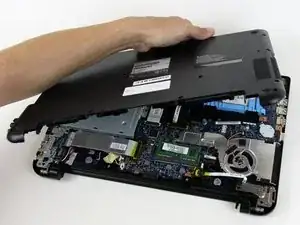

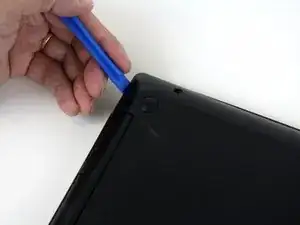

Use the plastic opening tool to pry up a corner of the back panel and continue to pop the back panel off.
Expect to hear popping as you pull the back panel off.

Schritt 5

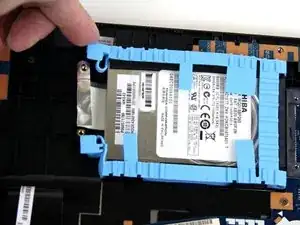

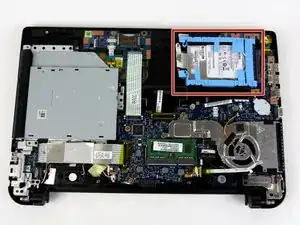

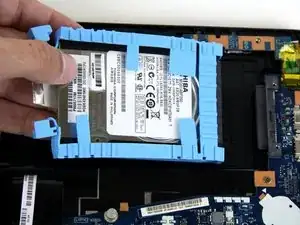

The hard drive is held in place with a soft, blue rubber retainer. The retainer can be disconnected by pulling up on the two tabs at the left side of the hard drive in these images.
