These steps will help guide you to removing the keyboard from your Toshiba Satellite C55-B5302 laptop. This will be more of a time consuming project. Make sure you have all the correct tools.

  1. N2IQuIrDTPLkEPQP
    N2IQuIrDTPLkEPQP
    krJIhOqkAicJOOi3
    • Flip laptop upside down so you can see the screws.

  2. eKKsUJ51G3gKaNvk
    eKKsUJ51G3gKaNvk
    jtO41mP4roFDu5Vj
    • Using the Phillips #0 screwdriver, remove the two 7 mm screws from the back casing.

  3. AQURyfJFiDZ3Y6rs
    • Pull the battery from the back of the laptop for removal from the laptop.

  4. 1oJeHSFZo16SHHoZ
    1oJeHSFZo16SHHoZ
    UseOQINrFVKWFilW
    Xxaa2OplsfHDFJbJ
    • Remove the remaining 7 mm screws on the back panel of the laptop with a Phillips #0 screwdriver.

    • Use the plastic opening tool to pry up a corner of the back panel and continue to pop the back panel off.

    • Expect to hear popping as you pull the back panel off.

  5. hIJZhBXZOVIveCZs
    • Disconnect the fan wire from the motherboard.

  6. Db2RTO1vnL6AOXpC
    Db2RTO1vnL6AOXpC
    WZu1gGx2eXDxc4BW
    MELS1QOmurPAIyeR
    • Remove the three 3 mm screws with a Phillips #00 screwdriver.

    • Remove the 5 mm screw with a Phillips #0 screwdriver.

  7. lbnnCLdTHJPfvbBF
    • You can now lift the fan out of the laptop.

  8. 4YIcJsYj4PPZY3dR
    4YIcJsYj4PPZY3dR
    FTuKVI3aVSGAuZcS

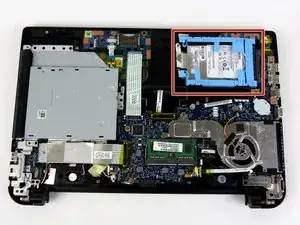

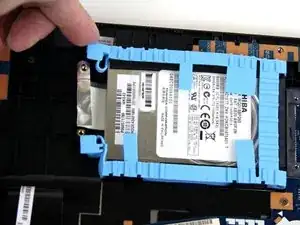

    • The hard drive is held in place with a soft, blue rubber retainer. The retainer can be disconnected by pulling up on the two tabs at the left side of the hard drive in these images.

  9. iMXSXKEMyq4ZjNhN

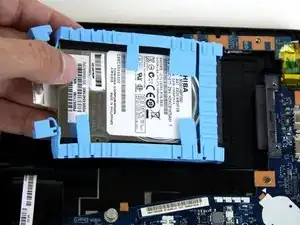

    • Gently pull the hard drive away from the connection to remove it from the laptop.

  10. 5DBeloqSeUts3Dm3

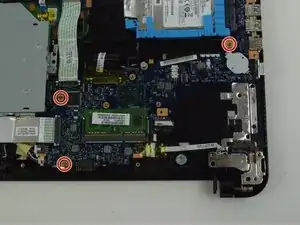

    • Using a Phillips #00 screwdriver, remove the three 3 mm screws on the board with white arrows pointing to them.

  11. R2BcvO5FMDAmoIJg
    R2BcvO5FMDAmoIJg
    xLI4ggBIRLWJkRfj
    OMI6DMTDD3CTyCUk

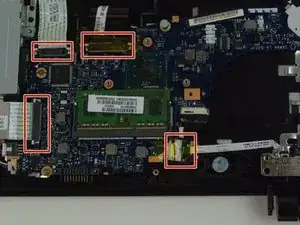

    • Disconnect the ribbon cables so that you can peel back the keyboard ribbon cable to free it.

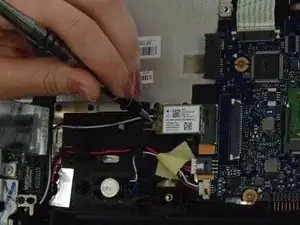

    • Remove the 5 mm screw from the chip under the metallic ribbon next to the memory card and disconnect the chip. Use a #0 Phillips screwdriver.

  12. RD6RgEXiXePP2oHV
    RD6RgEXiXePP2oHV
    NDhBbNmsbWTfn43C

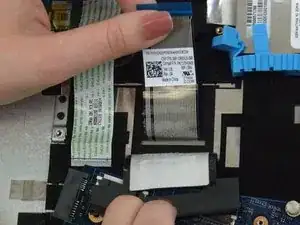

    • Slide the circuit board toward you so that you can access the keyboard ribbon cable.

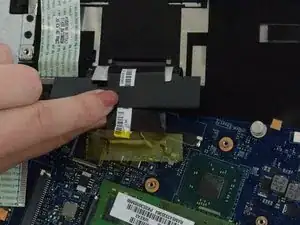

    • Separate the keyboard ribbon cable from the plastic it sticks to so that it is free.

  13. jIHjGOoVV2xPK23w

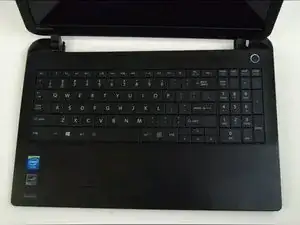

    • Open the laptop so you can see the keyboard.

  14. AqPfxsF2FIJJELFg
    AqPfxsF2FIJJELFg
    1HOhxOnqP3QPsLyO

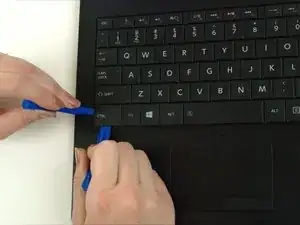

    • Use one plastic opening tool to slightly pry up the left control key and use another plastic opening tool to push the fasteners out of the way so that the keyboard begins to pop up

    • This is the hardest step and may take some time. You don't want to pop off the control key; just use enough pressure so that the keyboard will come up past each fastener when it gets the chance.

  15. KknlBLJlWyCKmCm2
    KknlBLJlWyCKmCm2
    WOrhrFgZn3sYWDe4

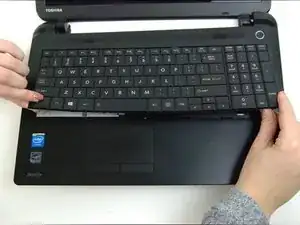

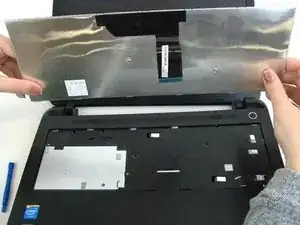

    • Pull the keyboard out.

    • You may have to keep the ribbon cable from sticking to components so that it can come free.

Abschluss

To reassemble your device, follow these instructions in reverse order.
