Toshiba Satellite C55-B5302 laptop Memory chip (RAM) Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to remove the memory chip from your Toshiba Satellite C55-B5302 laptop. You will need a Phillips #0 screwdriver and a plastic opening tool. Make sure your laptop is unplugged and cool before you start. The memory chip is easy to remove and should take 10 to 15 minutes.

  1. N2IQuIrDTPLkEPQP
    N2IQuIrDTPLkEPQP
    krJIhOqkAicJOOi3

    • Flip laptop upside down so you can see the screws.

  2. eKKsUJ51G3gKaNvk
    eKKsUJ51G3gKaNvk
    jtO41mP4roFDu5Vj

    • Using the Phillips #0 screwdriver, remove the two 7 mm screws from the back casing.

  3. AQURyfJFiDZ3Y6rs

    • Pull the battery from the back of the laptop for removal from the laptop.

  4. opQU2T6HrvOjrPIf
    opQU2T6HrvOjrPIf
    uFilaRRNwKnQKIFJ
    YgmkNgDWEny4NGrT

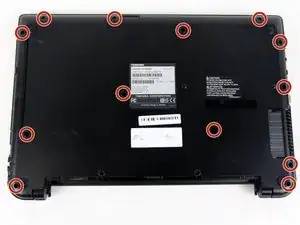

    • Remove the remaining thirteen 7 mm screws on the back panel of the laptop with a Phillips #0 screwdriver.

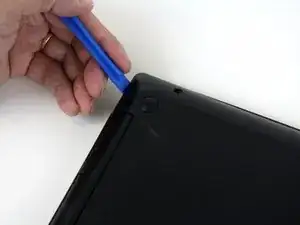

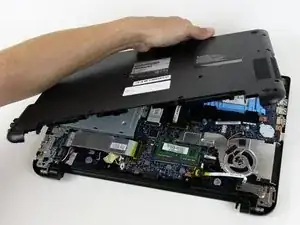

    • Use the plastic opening tool to pry up a corner of the back panel and continue to pop the back panel off.

    • Expect to hear popping as you pull the back panel off.

  5. xEQLlLSewG36FcpX
    xEQLlLSewG36FcpX
    PJNPEJdPj35KfUKF
    jkEsVa4WTYfa3fDu

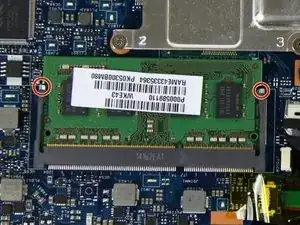

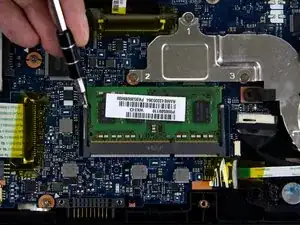

    • Push down on the two clips holding the RAM chip in place.

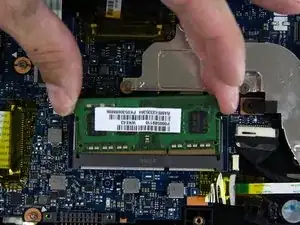

    • Pull the RAM chip up slightly and out away from the connection to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
