Toshiba Satellite C55-C5240 RAM Replacement

Geschrieben von: Angela Rodriguez
  • Kommentare: 0
Toshiba Satellite C55-C5240 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This is a guide that will assist you with replacing your RAM in a Toshiba Satellite C55-C5240.

  1. TMKG222mnioTICSC
    TMKG222mnioTICSC
    MCuquZ4xRbovIHiV
    FMsT5wfREoQyZTMN

    • Make sure you turn off the laptop before starting.

    • Remove the two 6.5mm PH1 Phillips screws securing the battery.

  2. wNVhCqqTF4OsiI4y
    wNVhCqqTF4OsiI4y
    XBfmZC4wV3ffLhBl
    QXHMkIVKRaonNqam

    • Pull the battery out, keeping it flat and parallel to the laptop so that it slides out easily.

  3. bINXLIL5k3cMiKhY
    bINXLIL5k3cMiKhY
    lLGA2XlKdpHGMOSM

    • Unscrew the ten 6.5mm PH1 Phillips head screws that hold down the back cover.

  4. eWInUSYZGkU621T3
    eWInUSYZGkU621T3
    2w6GxtvgxE2QwTLE
    UrtMqxYSmJIUYauw

    • Using the plastic opening tools, open the back cover and remove it from the laptop.

    • It is recommended that you start from a corner and run the tool along the edge of the cover.

    • Be careful not to bend or crack the cover.

  5. Zc6ZMLiHR66ab1qd
    Zc6ZMLiHR66ab1qd
    sVjFZ1GK5DB4RgOR
    MNBBZC5SscREqJwX

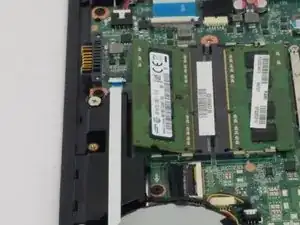

    • The RAM is at the upper middle area of the motherboard.

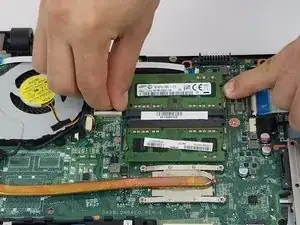

    • Push down on the clips on either side of the RAM stick evenly.

    • It will come loose in an angle once the clips are released.

  6. IkOVL1VUpuxp1gCK

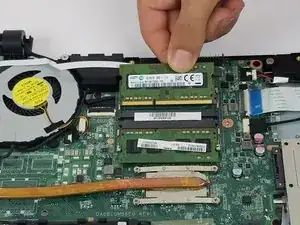

    • Simply pull out the RAM stick.

    • These steps work for both sticks of RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
