Toshiba Satellite C55-C5240 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 15 Minuten

Einleitung

When the screen is cracked or just does not work, it will need to be replaced. This is the guide you need to help you do that.

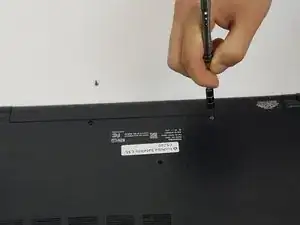

  1. TMKG222mnioTICSC
    TMKG222mnioTICSC
    MCuquZ4xRbovIHiV
    FMsT5wfREoQyZTMN

    • Make sure you turn off the laptop before starting.

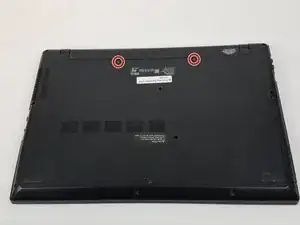

    • Remove the two 6.5mm PH1 Phillips screws securing the battery.

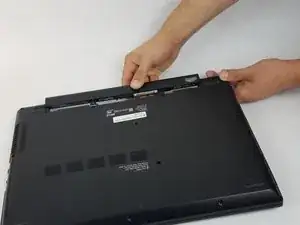

  2. wNVhCqqTF4OsiI4y
    wNVhCqqTF4OsiI4y
    XBfmZC4wV3ffLhBl
    QXHMkIVKRaonNqam

    • Pull the battery out, keeping it flat and parallel to the laptop so that it slides out easily.

  3. bINXLIL5k3cMiKhY
    bINXLIL5k3cMiKhY
    lLGA2XlKdpHGMOSM

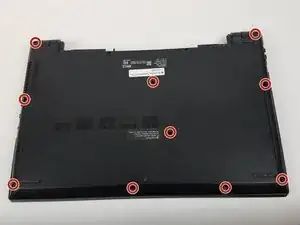

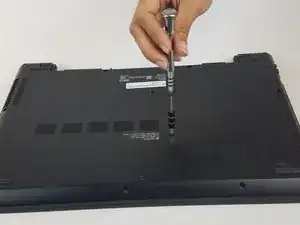

    • Unscrew the ten 6.5mm PH1 Phillips head screws that hold down the back cover.

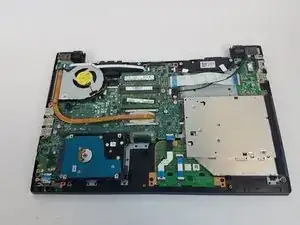

  4. eWInUSYZGkU621T3
    eWInUSYZGkU621T3
    2w6GxtvgxE2QwTLE
    UrtMqxYSmJIUYauw

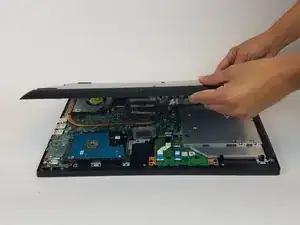

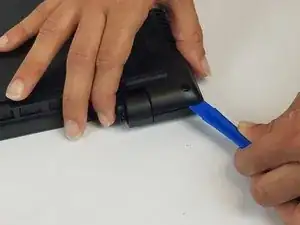

    • Using the plastic opening tools, open the back cover and remove it from the laptop.

    • It is recommended that you start from a corner and run the tool along the edge of the cover.

    • Be careful not to bend or crack the cover.

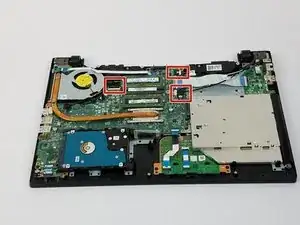

  5. fBPsbTHEbdZQUlH5
    fBPsbTHEbdZQUlH5
    up1D3VrZglZDq4fu
    Gq15FRFBIGER3GUU

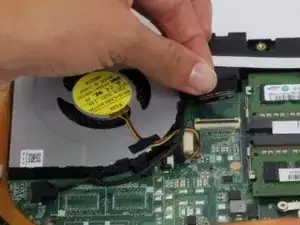

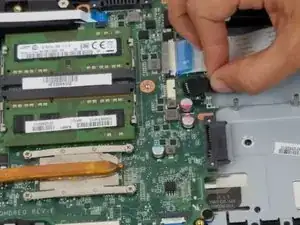

    • Carefully disconnect these three cables.

  6. iVIKnftBMkTJNcBP

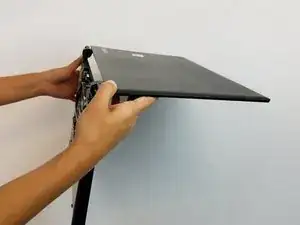

    • Open the laptop at a right angle to make the later removal much easier.

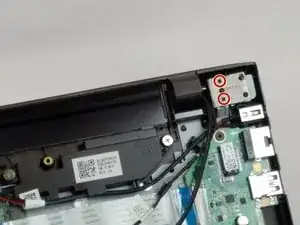

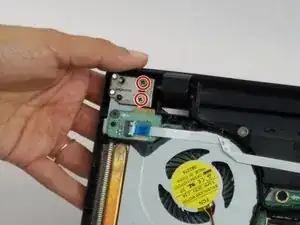

  7. 5ji1PDDYI1AturIf
    5ji1PDDYI1AturIf
    YOKvnuKhUvYVWEXd
    EAEFAvFn1vRUtbR3

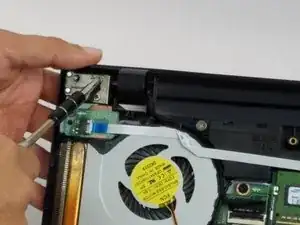

    • Unscrew the four PH1 Phillips head screws on the hinges.

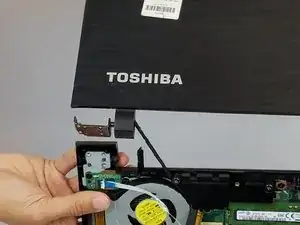

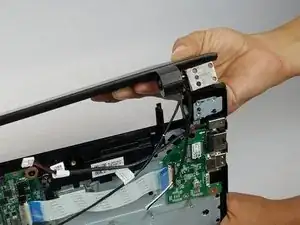

  8. BrnpcyTcs1OCZBbd
    BrnpcyTcs1OCZBbd
    Dty4h2cfnAL5LEGu

    • Separate the screen from the rest of the laptop.

    • Make sure the cables do not catch on the bottom piece.

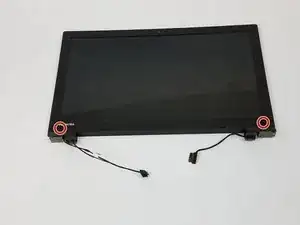

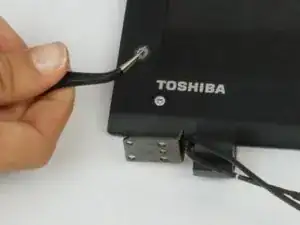

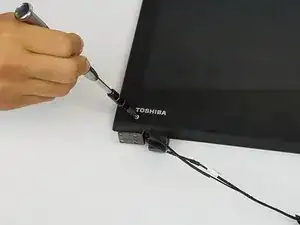

  9. nGBXVNEvbZTupEPQ
    nGBXVNEvbZTupEPQ
    VA5IS3WuwiYnHoNi
    MufKHMNv4p1JcPTp

    • Using a pair of tweezers, remove the two stickers on the bottom of the screen.

    • Unscrew the two screws underneath.

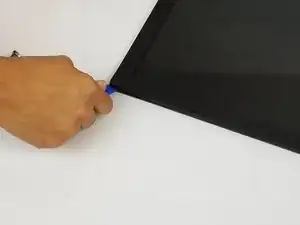

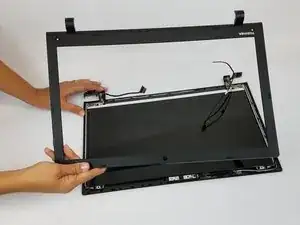

  10. VYhqUXxYikChHcY2
    VYhqUXxYikChHcY2
    kCTnXwBhVk4YYZIv
    5VAV4yT3DZhgoYVD

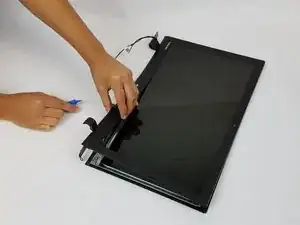

    • Stick the plastic opening tool underneath the screen bezel and run it along the edge of the screen.

    • Loosen each hinge separately, it would be more difficult otherwise.

  11. KA121tNVqjDVdMKP
    KA121tNVqjDVdMKP
    lrW1vB4vrH3FfjYN
    JbUVjSdVpvCmFt1p

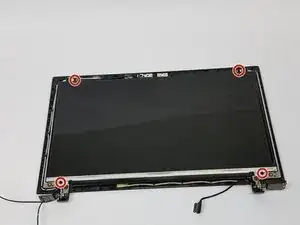

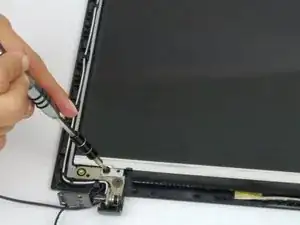

    • Unscrew the four inner screws around the screen.

    • Leave the two outer screws on the top alone.

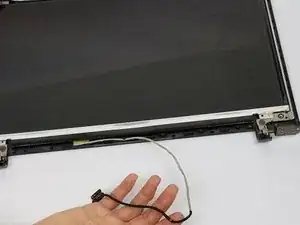

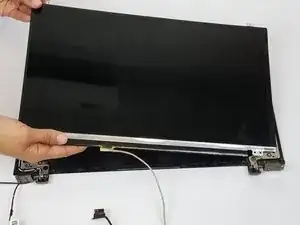

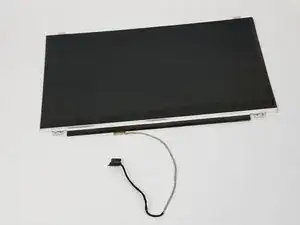

  12. CxL1IMyRpht5pVDm
    CxL1IMyRpht5pVDm
    PSlTVgEkFssw6NQj
    W1b2YkGnVsGObSxo

    • Mind the cable on the bottom of the screen.

    • Simply lift the screen out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
