Toshiba Satellite C55-C5268 Back Panel Replacement Guide

Geschrieben von: Ben Rounseville
  • Kommentare: 0
Toshiba Satellite C55-C5268 Back Panel Replacement Guide

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 Minuten

Einleitung

This guide will show you how to successfully remove the back panel to gain access to these components.

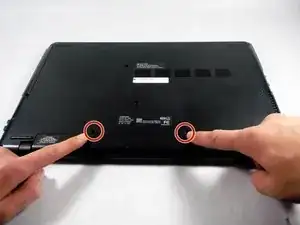

  1. VKCpPXZKUULQpcGm

    • Unplug and power off the laptop.

    • Unscrew the two 9 mm Phillips #1screws holding the battery in place.

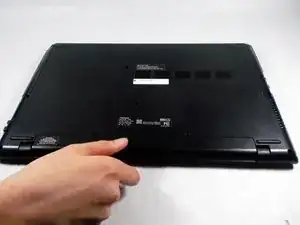

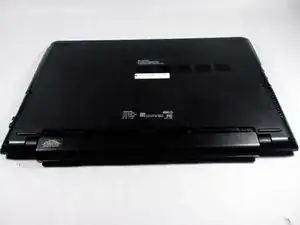

  2. aHgDBQmQKE4aDugd
    aHgDBQmQKE4aDugd
    GIwLIP12kXbuhxqm

    • Grab the battery and pull it away from the laptop to remove it.

    • This doesn't require a lot of effort, so you don't have to pull too hard.

  3. YGrnuvNxnvoJwZsC

    • Unscrew the 10 9.0 mm screws holding the back panel on using a Phillips head #1 screwdriver.

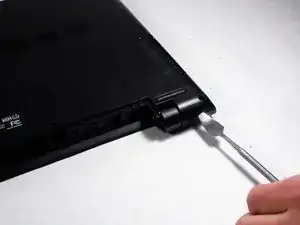

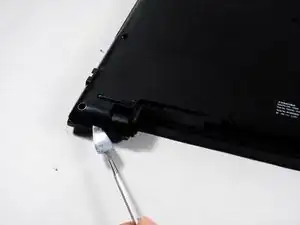

  4. BxCXL2nx2YEjNkuj
    BxCXL2nx2YEjNkuj
    y6uXxrccAZvgUXBv

    • Using a metal spudger can damage sensitive components.

    • Insert a metal spudger tool in the seam between the back cover and the laptop itself. Gently run the spudger around the edge to pop the cover off.

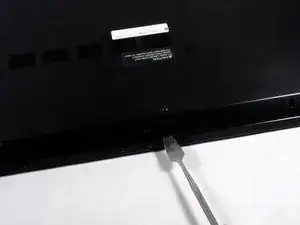

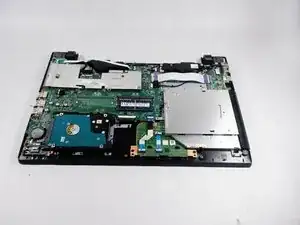

  5. Mvrt24udoTcPL3rS
    Mvrt24udoTcPL3rS
    QOyhWTtxFkgyCQA3

    • Pry up the back panel from the rest of the laptop using a spudger.

    • It is best to start around the USB port and work your way around the edge until the panel completely snaps off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
