Toshiba Satellite C55-a5310 Keyboard Replacement

Geschrieben von: Kari Rodgers
  • Kommentare: 2
Toshiba Satellite C55-a5310 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

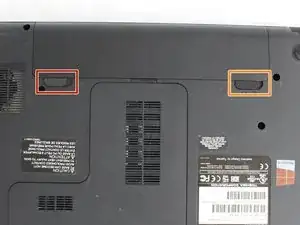

  1. U5jnNJdTVwudZBmu
    U5jnNJdTVwudZBmu

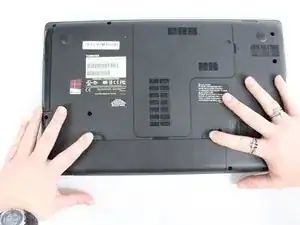

    Qy2pMRQNdlDFgshy

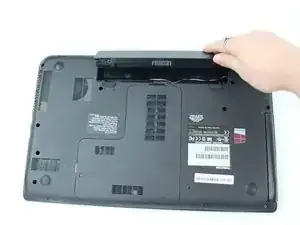

    oJPfhs2L4ZojZSDD

    • Push the left tab with your left hand.

    • Then push the right tab with your right hand.

    • While your right hand is still pushing, remove the battery with your left hand.

  2. dK5dTV1aVUInVMNs
    dK5dTV1aVUInVMNs
    PMoPxkwgVDEiDQak

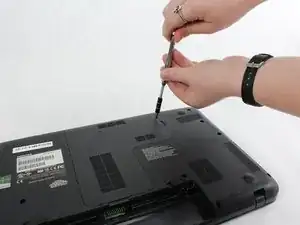

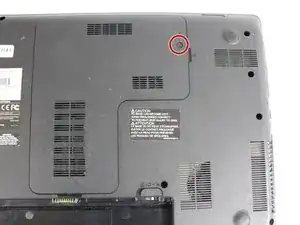

    • Remove this screw with a JIS #000 screwdriver.

    • This screw does not come out all the way.

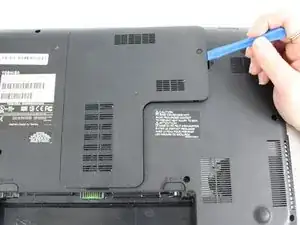

  3. yGXHa2QZiCQkPmE5

    • Remove the panel with the plastic opening tool. Make sure you lift it on all four sides.

  4. eXtyknGFTbvBliVX

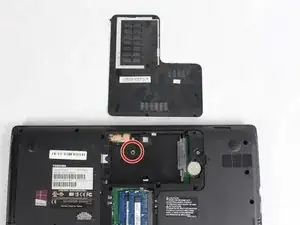

    eXtyknGFTbvBliVX
    fORKNhMZJOSJFDAw

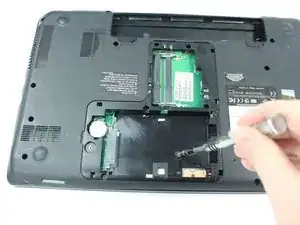

    • Using the JIS #000 screwdriver, remove the .5mm screw.

  5. hMUGdMhWT3ftkb4P
    hMUGdMhWT3ftkb4P

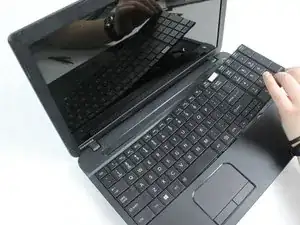

    NFXpPHG5CtxhWOUF

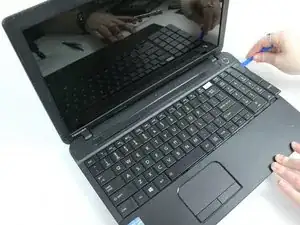

    • Use the plastic opening tool to remove the keyboard from the laptop.

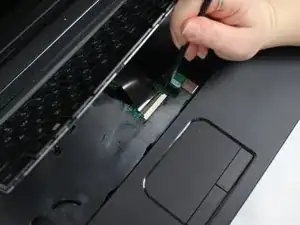

  6. qo1glWAPoMRaZ3eM
    qo1glWAPoMRaZ3eM

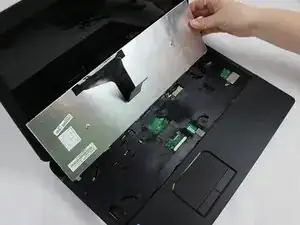

    IhhLBsVoAZLpGUML

    • Once keyboard is popped out, use a nylon spudger to undo the ribbon or flap that attaches the back of the keyboard to the inside base of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kari Rodgers

Mitglied seit: 08/02/18

482 Reputation

2 Kommentare

Step has the incorrect screw to release the keyboard. There is no need to open the back panel. The screw which holds down the keyboard is the long screw between the Serial Number sticker and the battery release switch #2.

Anthony Francisco -

Agreed 100%. Good thing I looked at this comment before I ran into major trouble. Thank you!

Jeff Breuer -
