Toshiba Satellite C55D-A5108 Back Cover Replacement

Geschrieben von: Kristen Gismondi
  • Kommentare: 0
Toshiba Satellite C55D-A5108 Back Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

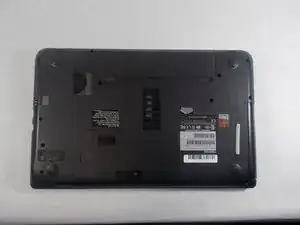

  1. IpVMhJsrTePTZWOf

    • Flip over the device so that the model stickers are facing up.

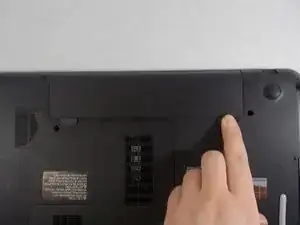

  2. redOrHYUN5QBGECT

    • Move the right notch to the unlock position by sliding it to the right.

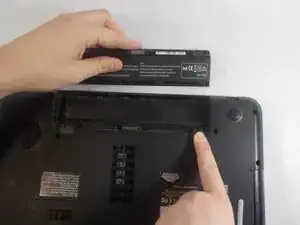

  3. XPC1DZfiUG2yTqYB

    • Hold the left notch in an unlocked position with one hand and use the other hand to slide the battery out.

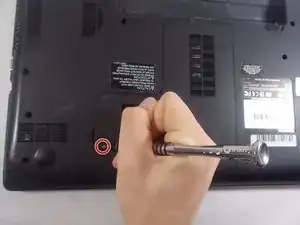

  4. VcM2lURCRAogPNhl

    • Remove the Phillips #0 screw from the memory cover.

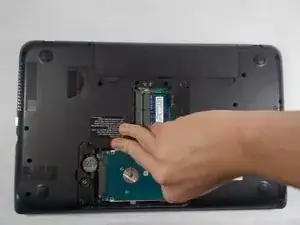

  5. N4trMpsB3iUcFf2o

    • Grasp the side of the hard drive opposite the circular battery, and carefully pull out the drive by moving it away from the circular battery.

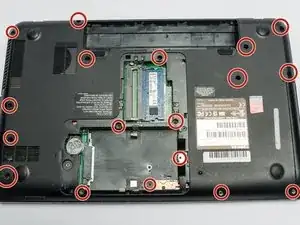

  6. UNJtc4lnfAmGOy5C
    UNJtc4lnfAmGOy5C

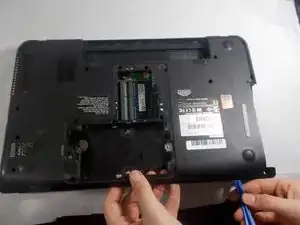

    SVLRGOu6JbUKMIYg

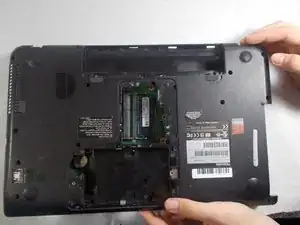

    YJvUX3hI1q3Q3vgr

    • Remove the 16 screws holding the back cover with a Phillips #0 screwdriver.

    • Pry the cover off with an opening tool.

    • Gently remove the cover with your hands and place to the side.

Abschluss

To reassemble your device, follow these instructions in reverse order.
