Toshiba Satellite C55D-A5201 RAM Replacement

Geschrieben von: Ashley Cannon
  • Kommentare: 1
Toshiba Satellite C55D-A5201 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

Remove the RAM module with this guide. Reverse the steps to install a new one to allow for more laptop storage.

  1. QIXnMUMks1irTScI
    QIXnMUMks1irTScI
    exEGA1TN2paWLYiJ
    jmmb21NEsQLjOTEU

    • Close the laptop, and flip it upside down. You want the spine to be furthest away from you.

  2. VTNmxiWNk145uNkS

    • Release the locking mechanism by switching the left slider to the left.

  3. qXLquGSk21ahyTCE
    qXLquGSk21ahyTCE
    ZXmwreH5vkttPAA5

    • Slide the right slider to the right, and simultaneously, pull the battery out at a diagonal angle.

  4. MyXEFBecU4iAYn1L
    MyXEFBecU4iAYn1L
    X1H26QT5WvIGEFlj

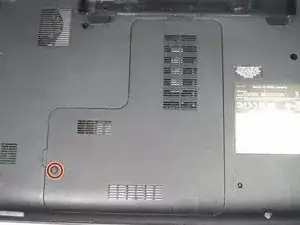

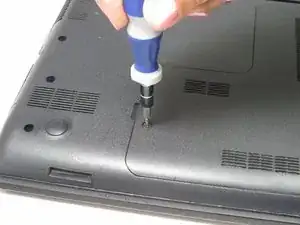

    • With the Phillips #0 screwdriver, unscrew the 4.6mm screw on the left side of the "L"-shaped covering.

  5. aOIVBySyuL2uBZDK
    aOIVBySyuL2uBZDK
    xMtDBaI4H6KNedpW

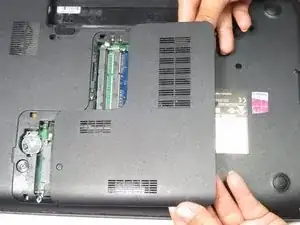

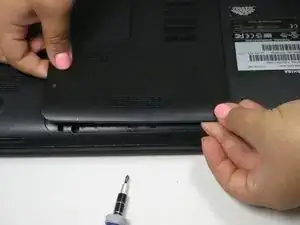

    • Lift up the "L"-shaped plastic covering to remove it.

    Be patient, lift both sides, and don't use a screwdriver to open it or you will break the nobs.

    Royer Adames -

  6. UGEPPbel1GIdeTQM
    UGEPPbel1GIdeTQM
    xb1DNLxlORjsFRaA
    V4PaMp53mX5whAFu

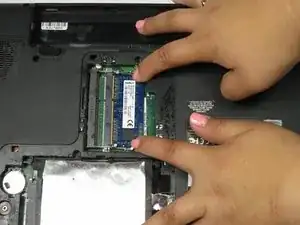

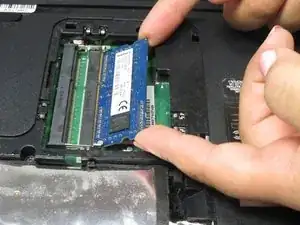

    • Push the two metal prongs on either side of the RAM module away from the module simultaneously.

    • Lift up the RAM module to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
