Toshiba Satellite C55D-B5206 RAM Replacement

Geschrieben von: David Amodei
  • Kommentare: 1
Toshiba Satellite C55D-B5206 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. ZEltTOdJIxmFoQGb

    • First, flip the laptop over and use the J1 screwdriver (in the iFixit tool kit) to unscrew the 15 screws indicated in the picture.

    • Make sure to put your screws in a safe place to make sure they do not get lost.

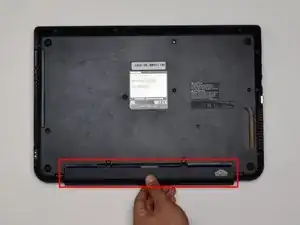

  2. POBRuDRYfCEL3MDW

    • Once you take the screws out, take the battery off; it should slide off easily.

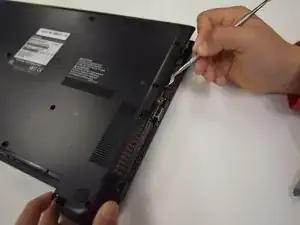

  3. bFmusO6IhXlhshVk

    • Next, move around the edges of the computer with the metal spudger prying off the casing. You should hear clicks as you do this; this is not the casing breaking, it is just popping off.

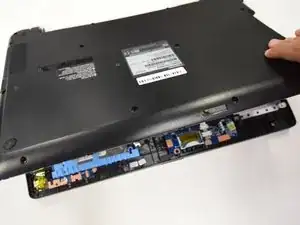

  4. LXELTVmIqilOUOlI

    • Then, carefully take off the back casing of the laptop and set it aside.

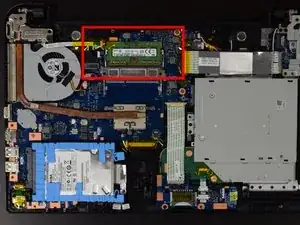

  5. 62sXLWtnVNKL2EP3

    • This is where the RAM is located that you will be replacing.

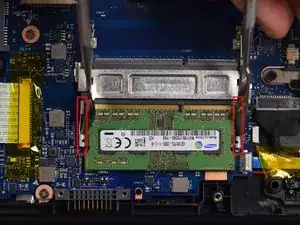

  6. GfcXUhBdLwF3tGZm

    • There are two clips holding the RAM in place.

    • You will need to hold both of them back to be able to safely remove the RAM.

    • Use plastic spudgers, as the metal spudgers pictured here are not ESD-safe.

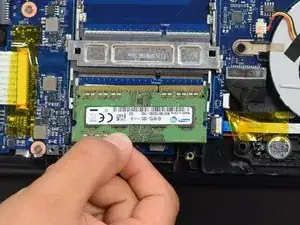

  7. s6GSgOlBoESiLKoJ

    • Gently remove the RAM and insert replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
