Einleitung

If the hard drive in your laptop begins to make a loud clicking noise known as "the Click of Death", use this guide to remove and replace your hard drive.

  1. vjy4pMQAhI2UcPPS
    • Use a Phillips #1 screwdriver (PH1 bit) to remove the single 7 mm screw that secures the CD/DVD drive.

  2. tLFxyuonwjQJFmUn
    tLFxyuonwjQJFmUn
    x3aTxOwWkGlXEUQW
    • Slide the CD/DVD Drive out of the laptop.

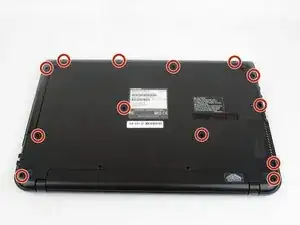

  3. QRZhkKjMxCchH2Wu
    • Use a Phillips #1 screwdriver (PH1 bit) to remove the thirteen 7 mm screws that secure the bottom cover.

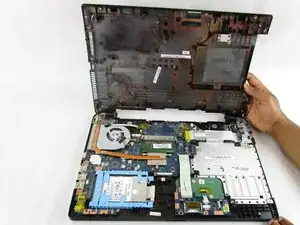

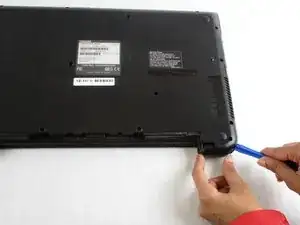

  4. F1vF6cm2eKG144cp
    F1vF6cm2eKG144cp
    hKlrdmUVOeXIj5No
    • Use a plastic opening tool to separate the back cover from the laptop.

    • It is recommended that you start from a corner, and run the tool along the edge of the cover.

    • Be careful not to bend or crack the plastic back cover.

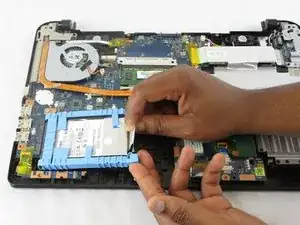

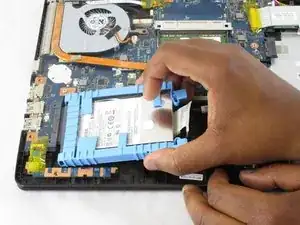

  5. QCISCFM3TK5WhyJJ
    QCISCFM3TK5WhyJJ
    OSN5xIVbYHWApRYb
    • Using the ribbon beneath the hard drive lift it upwards and pull the hard drive out.

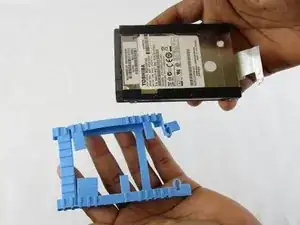

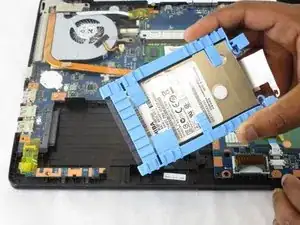

  6. ZgqZvnhahKtLjNFv
    ZgqZvnhahKtLjNFv
    HwXwNNA1LYmBPCGf
    ZZvVNxr3Tmh12XUw
    • Remove the hard drive from the blue rubber mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
