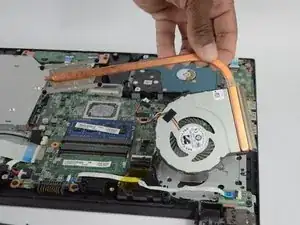

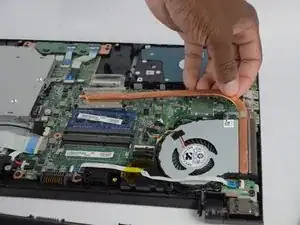

In the case you need to replace the cooling fan and heat sink of your Toshiba Satellite C55D-C5106, this guide will show you the steps on how to perform the task.
Werkzeuge
-
-
Turn the laptop off and remove any external power sources.
-

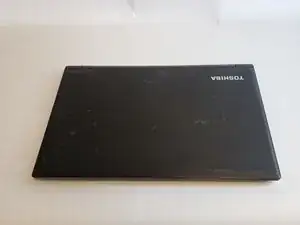

Flip the laptop upside down.
-

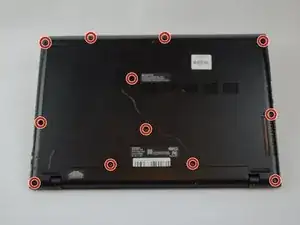

Remove all of the 12 screws that secure the back cover to the laptop with a Phillips #1 screwdriver.
-
-
-

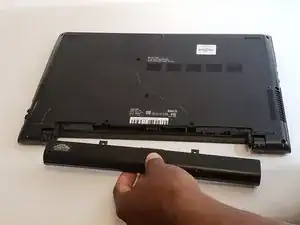

Pull the battery toward yourself until it is completely removed from the laptop. The battery should detach easily.
-
-
-

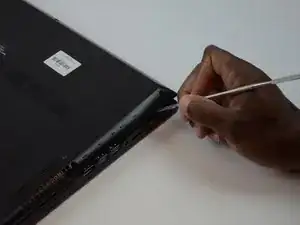

Run the metal spudger around the seam between the back cover and the rest of the laptop.
-

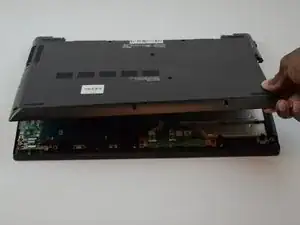

Use the metal spudger to remove the bottom cover of the laptop.
-
-
-

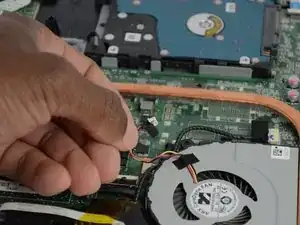

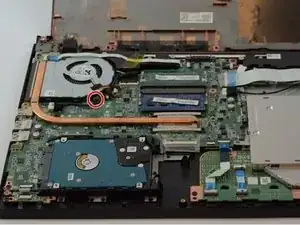

Disconnect the fan from the motherboard by removing the white holder with the red, yellow, and black wires.
-
To reassemble your device, follow these instructions in reverse order.
